Introduction

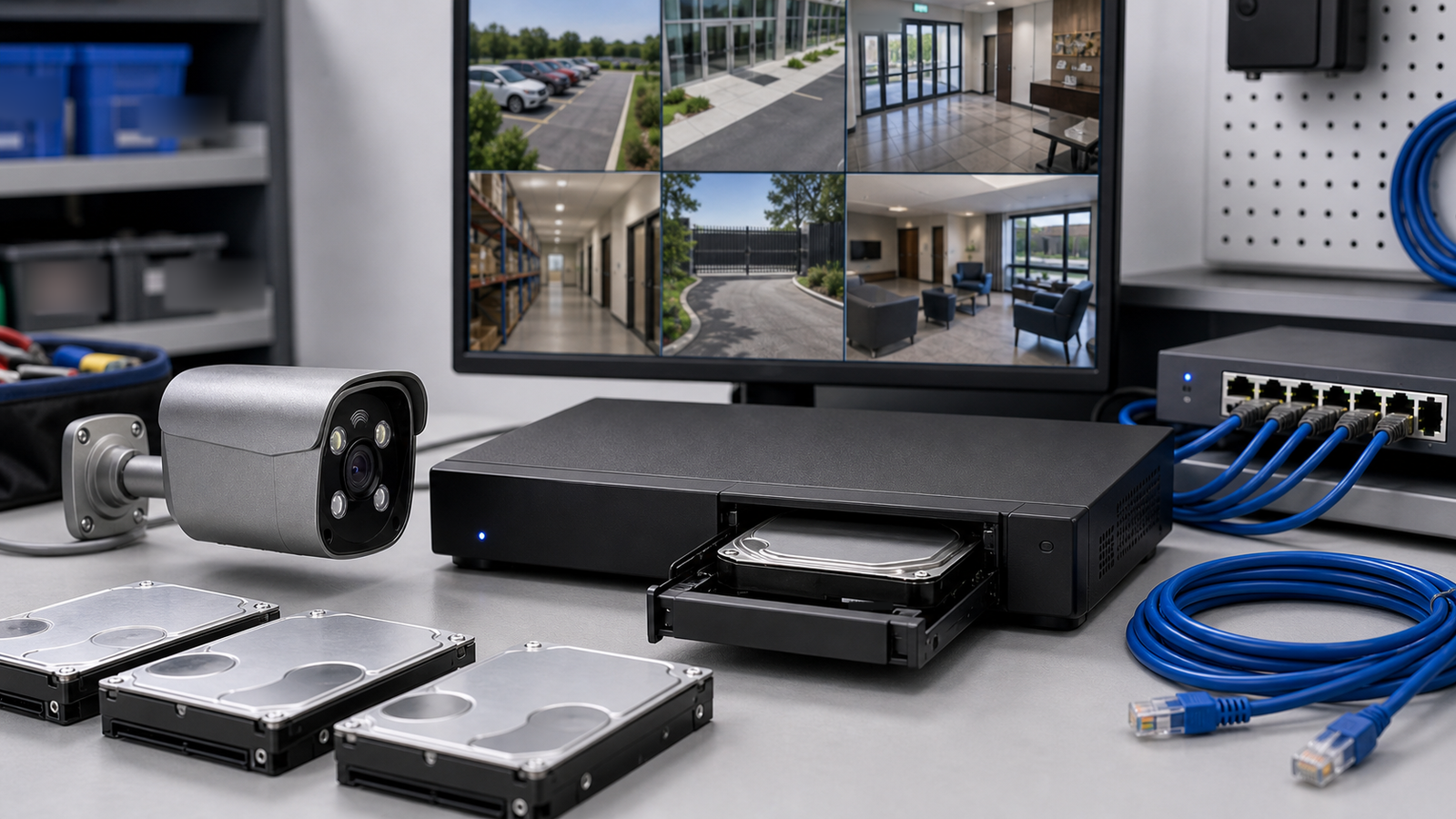

Surveillance storage planning answers a question every security camera buyer eventually asks: how much NVR hard drive capacity do I need? The answer is not based only on the number of cameras. Storage depends on camera count, resolution, bitrate, frame rate, codec, recording mode, scene activity, audio, retention days, and the way the NVR security system manages video streams.
Many buyers discover storage problems only after installation. The system appears to record normally, but old footage is overwritten after a few days instead of the expected 30 days. This is frustrating for homes and risky for businesses, especially when an incident is discovered late. A delivery dispute, inventory loss, parking accident, or workplace safety question may not be reviewed until days or weeks after it happened.
Storage planning looks mathematical, but the buying problem is practical. Home security camera users, small business buyers, installers, and procurement teams need to know whether footage will still be there when someone finally checks it.
Main Technical Explanation
An NVR records video streams from IP cameras. Each stream has a bitrate, usually measured in megabits per second (Mbps). Bitrate is the most important number for storage because it describes how much data is being written over time. Resolution, frame rate, codec, and scene complexity all influence bitrate, but the final storage calculation is based on the actual bitrate being recorded.
A simple decimal storage estimate is:
Storage in TB = camera bitrate in Mbps x number of cameras x seconds per day x retention days / 8 / 1,000,000
The division by 8 converts megabits to megabytes. The division by 1,000,000 converts megabytes to decimal terabytes. This is an estimate, not an exact guarantee, because NVR file systems, drive formatting, variable bitrate behavior, metadata, audio, and reserved space can affect real results.
For example, assume eight IP cameras record continuously at 4 Mbps each for 30 days:
4 Mbps x 8 cameras x 86,400 seconds x 30 days / 8 / 1,000,000 = about 10.37 TB
In practice, a buyer might choose at least 12 TB or more to allow for overhead, bitrate variation, future changes, and a safety margin. If the same system records motion only and motion occurs 40 percent of the time, storage may be lower. But motion percentage is hard to predict. A camera facing a busy road, moving trees, rain, or night noise may trigger frequently.
Codec matters. H.264 and H.265 are common video compression formats. H.265 can reduce bitrate for many scenes compared with H.264 at similar quality, but savings vary. A static hallway may compress efficiently. A warehouse with constant movement, reflective surfaces, and low-light noise may require more data. Some camera brands also use smart codecs that reduce bitrate in low-motion areas. These features help, but the buyer should still calculate storage using realistic configured bitrates.
Frame rate also matters. A camera recording at 25 or 30 frames per second uses more data than one recording at 10 or 15 fps if other settings are similar. Many security applications do not require high frame rates. Entrances, storage rooms, and general monitoring often work well at moderate frame rates. Fast-moving vehicle scenes, cash handling, or industrial processes may need higher frame rates.
Resolution affects storage because higher resolution often requires higher bitrate. However, bitrate is still the value to use in planning. A poorly configured 8MP camera at low bitrate may produce blocky video, while a 4MP camera at a reasonable bitrate may provide better usable evidence. Storage planning should balance image quality and retention, not simply minimize bitrate.
Key Features or Concepts
Bitrate is the amount of video data produced per second. It is usually measured in Mbps and is the foundation of storage calculation.
Retention days are the number of days footage remains available before being overwritten. Common targets include 7, 14, 30, 60, or 90 days.
Continuous recording records all the time and produces predictable storage use based on bitrate.
Motion recording saves only when motion is detected. It can reduce storage, but real savings depend on scene activity and detection tuning.
Event recording starts when analytics or alarm inputs trigger. It can reduce storage and improve search, but it must be configured carefully.
Codec means the compression method, such as H.264 or H.265. Better compression can reduce storage but may affect compatibility or require more processing.
Variable bitrate changes depending on scene complexity. It can save storage but makes prediction less exact.
A surveillance hard drive is designed for continuous recording workloads and multiple camera streams. NVR systems should use drives rated for surveillance use.
RAID and redundancy reduce the chance of losing data when a drive fails. Many small NVRs do not use RAID, so drive health monitoring is still important.
Buying Considerations
Start with retention. Ask how many days of footage are genuinely needed. A home may need 7 to 14 days. A small retail store may choose 30 days. A warehouse may need 45 or 60 days if delivery disputes are discovered late. A regulated or high-risk environment may need a specific retention period, but longer retention also increases privacy risk and cost.
List every camera and estimate its bitrate. Do not use one generic number for all cameras if the system has mixed resolutions. A 2MP indoor camera, 4MP outdoor security camera, 8MP parking lot camera, and PTZ camera may all use different bitrates. Night scenes often require more data because image noise is harder to compress.
Decide recording mode by camera. Continuous recording should be calculated for the full selected period. Schedule recording should calculate only the active hours. Motion recording can be estimated using expected motion percentage, but buyers should be conservative. A store sales floor may have motion almost all day. A quiet stock room may have very little motion. An exterior camera facing rain or trees may trigger more often than expected.
Use storage calculators as a planning check. Manufacturer calculators from storage and camera companies can help estimate capacity based on resolution, frame rate, codec, bitrate, camera count, and retention. These calculators are useful, but they rely on the values you enter. If the bitrate estimate is too low, the result will be too low.
Choose hard drives designed for surveillance. NVR hard drives are usually expected to write video continuously, often 24/7. Desktop drives may not be designed for the same workload. Check the NVR compatibility list, maximum supported drive size, number of drive bays, and whether the recorder supports hot swap or RAID.
Plan for expansion. If you buy an 8-channel NVR and install six cameras today, you may add two more later. Storage should allow for the future cameras or the NVR should have drive bays for expansion. Increasing resolution later also increases storage use.
Verify after installation. Once the system has run for several days, check the oldest available recording. If the oldest footage is much newer than expected, adjust bitrate, recording mode, drive capacity, or retention goals. Storage planning is not complete until retention is confirmed in the real system.
Common Applications
Home security camera systems often record exterior cameras, garages, and entry areas. Many homes use motion recording to reduce storage, but front door and driveway cameras may benefit from continuous or scheduled continuous recording during high-risk periods.
Retail systems often need continuous recording during opening hours. Checkout disputes, customer incidents, and staff safety reviews require context. After closing, motion or AI event recording may reduce storage while still capturing after-hours activity.
Warehouses may need long retention because inventory and delivery issues are not always discovered immediately. Loading docks, receiving areas, and high-value storage zones may require continuous recording. Perimeter cameras may use event rules.
Office systems may have moderate storage needs because traffic is predictable. Privacy may lead to shorter retention periods. Important views include reception, entrances, server rooms, and parking areas.
Parking lots and outdoor areas can consume more storage than expected. Headlights, rain, snow, trees, insects, and low-light noise can increase motion events and bitrate. Outdoor cameras should be tested at night before final storage assumptions are accepted.
Common Problems
The most common storage problem is using camera count as the only planning factor. Eight low-bitrate 2MP cameras and eight high-bitrate 8MP cameras have very different storage needs. Camera count alone is not enough.
Another problem is using advertised maximum resolution without checking configured bitrate. A security camera may be capable of 8MP, but the NVR may record it at a lower stream, lower frame rate, or lower bitrate. Buyers should confirm actual recording settings.
Motion recording assumptions can be wrong. A camera may record nearly continuously because of rain, moving shadows, reflections, or street traffic. If the storage plan assumes 20 percent motion but the real site has 80 percent activity, retention will be much shorter.
Hard drive formatting and usable capacity can surprise buyers. A drive sold as 10 TB does not always provide 10 TB of usable recording space after formatting, reserved space, and system use. Add margin.
High compression can damage evidence quality. Reducing bitrate too far may create blocky video, smeared motion, or unreadable details. Storage savings should not make footage useless.
Drive failure is often ignored. Surveillance drives run continuously and eventually fail. Check NVR health alerts, replace aging drives, and consider redundancy where evidence availability is critical.
FAQ
How much NVR storage do I need for 8 cameras?
It depends on bitrate and retention. Eight cameras at 4 Mbps recording continuously for 30 days need about 10.37 TB before margin. Lower bitrate, motion recording, or shorter retention reduces capacity.
Is resolution the same as bitrate?
No. Resolution is the number of pixels in the image. Bitrate is the amount of data used per second. Storage is calculated from bitrate.
Does H.265 cut storage in half?
Sometimes it can reduce storage significantly compared with H.264, but not always by half. Scene motion, lighting, camera settings, and compatibility affect the result.
Should I use motion recording to save storage?
Motion recording can save storage, but it must be tested. In busy or noisy scenes, it may record much more than expected.
What frame rate is enough for security cameras?
Many general surveillance scenes work at 10 to 15 fps. Fast movement or detailed transaction review may need more. Higher frame rate increases storage.
Can I add hard drives later?
Only if the NVR has available bays and supports the drive size. Check the recorder specification before buying.
Do I need a surveillance-rated hard drive?
For an NVR security system, surveillance-rated drives are recommended because they are designed for continuous video recording workloads.
How do I know if retention is correct?
After installation, check the oldest available footage. Compare it with the target retention period and adjust settings or storage if needed.
Related QuarkView Planning
Storage sizing is easier when it is connected to recording policy, compression, and recorder design. Review security camera recording basics, the H.264 vs H.265 compression guide, local storage vs cloud storage, and the NVR vs DVR guide before finalizing hard drive capacity.
QuarkView PoE camera systems, security camera accessories, and PoE switches and power accessories should be planned around the same retention target so the camera count, bandwidth, and power design stay realistic.
Summary
Do surveillance storage planning before buying an NVR hard drive. The main input is bitrate, multiplied by camera count and retention time. Resolution, frame rate, codec, recording mode, and scene activity all influence that bitrate. A realistic plan uses storage calculators, surveillance-rated drives, expansion margin, and post-installation verification. The point is not to store video for its own sake. The point is to keep usable footage long enough for real incidents to be discovered and reviewed.
