Small sites still need a real coverage plan
A small shop or office can look simple, but camera placement decisions still matter. One camera pointed at the whole room may show that something happened without showing who did it or where it started. A better plan separates the site into zones: entrance, transaction area, merchandise or storage, staff-only space, and exterior approach.
The goal is not to cover every inch with the same detail. The goal is to capture usable evidence at the places where people enter, handle goods, make payments, or move through restricted areas.
Start with the entrance
The front entrance is usually the most important view. Place a camera where it can see faces as people enter, not only the tops of heads. If the door has strong backlight, test the view at different times of day. A second indoor angle can sometimes capture better facial detail than an outdoor camera facing glare.
For restaurants, entrance recordings can help review arrival or a delivery handover when this is within the stated purpose. For offices, the view can support after-hours access review. Where a reception handles sensitive customer or patient information, frame the access route without unnecessarily recording screens, paperwork or consultations.
Cover the checkout or service desk
Retail counters, reception desks, and payment areas need clear framing. The camera should show the customer side, staff side, and the transaction surface without creating an overly invasive angle. If cash handling is important, prioritize detail over a very wide view.
Do not rely on one ceiling corner camera to cover both the entrance and checkout if the distance is large. Splitting those views often produces much better footage.
Watch stock and staff-only areas
Back rooms, stock shelves, delivery doors, and office storage areas are common blind spots. A small business may not need many cameras, but one well-placed camera at a rear entry or stockroom can prevent a large coverage gap.
For restaurants, consider dry storage, freezer entrances, rear doors, and waste pickup areas. For clinics and offices, focus on public reception, restricted storage, and exterior approach rather than sensitive private spaces.
Choose PoE or WiFi by reliability needs
For permanent fixed positions with a practical cable route, compatible PoE supplies camera power and data over Ethernet and avoids dependence on the site’s WiFi coverage. Check the selected camera’s power type, switch limits, routed cable length and recorder compatibility; wired equipment still needs correct installation and stable power.
WiFi can work for one or two nearby indoor cameras, especially in rented spaces where cable routing is limited. Before choosing WiFi, check power access and signal strength at the actual mounting point, not just near the router.
Storage and remote viewing
Decide how long reported incidents must remain available, then calculate storage from camera bitrates and recording hours, not resolution alone. Include weekends and delayed delivery or shift reviews if relevant to the purpose. Confirm recorder drive support and usable capacity and check the oldest playable footage. Use the storage calculator with your schedule.
Remote viewing is useful for owners who travel between sites or check closing procedures. Use strong passwords and give staff only the access they need.

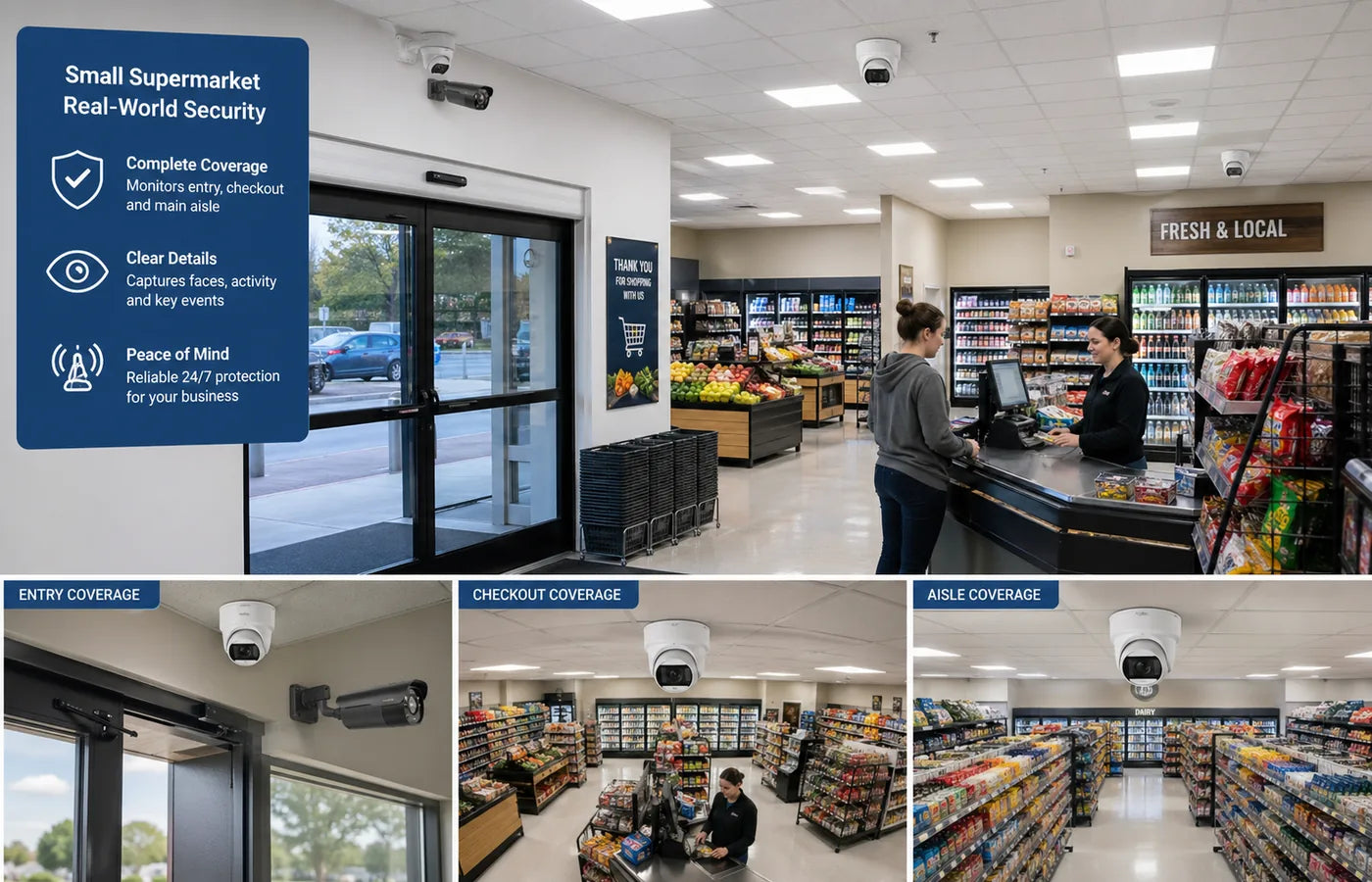

A practical starter layout
- One camera for the main entrance.
- One camera for the checkout or service desk.
- One camera for stockroom or rear door activity.
- One camera for exterior approach, parking, or delivery area if needed.
Treat this three-to-four-position layout as a starting example, not a guaranteed coverage count. It assumes separate entrance, counter and stock/rear tasks, plus an optional exterior view. An L-shaped shop, tall displays, two reception desks or a detached delivery area may require another position. Verify each task with normal furniture and people in place before choosing the camera quantity.
Turn the positions into an equipment request
For each position, record the target distance, width to be covered, required detail, mounting options, light and connection. The Axis image-usability guide separates broad overview from identification and stresses scene testing. A higher resolution cannot recover a face hidden by a shelf; a tighter lens improves the selected view while excluding other parts of the room.
| Decision | What to ask for | Why and how to check |
|---|---|---|
| Entrance and counter lens | Recorded sample at the measured distance and intended framing | Walk through the backlit doorway and perform a sample handover; check moving detail, not a still product image. |
| Network and power | PoE compatibility or continuous power and tested WiFi path | Test the mounting point during a busy shift; a WiFi label does not make the camera battery-powered. |
| Recorder and drive | Supported camera count, incoming bandwidth, codecs and exact drive option | Confirm every planned channel records and plays back together, with the stated schedule and room for any defined expansion. |
| Owner and staff access | Separate live view, playback, export and administration rights where needed | Use real intended accounts; verify permissions and account recovery rather than sharing one administrator login. |
| Order and maintenance | Package contents, mounts/cables, warranty route and future-model availability | A camera bundle may exclude the drive or installation parts; name the person who will check recording and maintain the equipment. |
For a small office, prioritise reception and access to restricted storage without filming confidential desks unnecessarily. For a restaurant, test the counter and rear delivery route during normal service; stacked supplies, an open door or a parked delivery vehicle can change coverage. These differences should change the view or lens request, not just the product label.
Agree the recording and privacy rules
Give each view a purpose and avoid toilets, changing spaces and unnecessary sensitive paperwork or screens. Audio needs a separate assessment; leave it disabled when it is not required. For UK employers, ICO worker-monitoring guidance explains the need for proportionate monitoring and transparency. Follow the rules applicable to the site; that UK guidance is currently under review after legislative changes.
Check the system before the installer leaves
- Walk the entrance-to-counter and stock/rear-door routes in daylight and with the normal after-hours lights. Check moving detail and obstruction with the furniture, stock and doors in their normal positions.
- Replay a known interval on every intended channel. Verify aligned time, actual recording schedule and the manager’s playback permissions; live video alone does not prove recording works.
- Export a short test handover and open it in the receiving player. Check that unnecessary sensitive detail and privacy masks are handled as intended in the saved and exported view.
- If remote viewing or alerts are required, try the authorised owner account from an outside network. Agree any power/link interruption test beforehand and document whether recording resumes and what gap remains.
Keep the camera map, exact equipment/drive list, account responsibilities, recording settings and unresolved exceptions. Recheck views after shelf or desk changes. Assign lens cleaning, recording-health checks, access reviews and safe update procedures.
Prepare a quote and the next planning step
Send the site sketch, position tasks, recording window, existing equipment and installation constraints with a configuration enquiry. Confirm included hardware, compatible models, destination shipping and applicable warranty terms before ordering.
Use the PoE versus WiFi guide for connection choices, the installation guide for handover, and camera-system configurations for a shortlist.
