Weatherproof Ratings Explained: IP66, IP67, and Outdoor Camera Protection

QuarkView Security Learning Center. This guide is part of QuarkView's practical security camera knowledge base for home, retail, office, warehouse, installer, and small business projects.

Use it to clarify requirements before comparing PoE camera systems, NVR recorders, outdoor cameras, wireless cameras, and accessories.

Outdoor surveillance is exposed to rain, dust, wind, humidity, temperature changes, insects, sunlight, and installation mistakes. A camera that works perfectly indoors may fail quickly if it is mounted outside without proper environmental protection. This is why buyers often search for a weatherproof security camera rating before choosing an outdoor security camera.

The most common rating language is the IP code, such as IP66 or IP67. IP stands for ingress protection. It describes how well an enclosure resists entry by solid objects and water under defined test conditions. In the security camera industry, IP66 and IP67 are common ratings for outdoor CCTV camera housings, PoE camera bodies, junction boxes, and related devices. These ratings are useful, but they are often misunderstood. A rating does not mean a product can be installed carelessly, submerged permanently, sprayed with high-pressure cleaners, or left with exposed cable connectors.

IP66 and IP67 are useful starting points, but outdoor camera protection also depends on cable sealing, mounting accessories, operating temperature, corrosion resistance, vandal ratings, condensation, and maintenance. A well-rated camera can still fail early if the connector sits in rainwater or the cable entry is left open.

How it works

An IP rating has two digits. The first digit describes protection against solid objects such as dust. The second digit describes protection against water. For example, IP66 means the product is dust-tight and protected against powerful water jets. IP67 means the product is dust-tight and protected against temporary immersion in water under specified conditions. Both are strong ratings for many outdoor security camera applications, but they are not identical.

The first digit 6 means dust-tight under the specified test: no dust ingress is allowed. Do not confuse it with digit 5, which permits limited dust that does not impair operation or safety. A dust rating does not prove resistance to corrosive gases, salt or a suitable temperature range.

IP66 and IP67 address different water exposures: powerful jets and temporary immersion. IP67 alone does not establish the IPX6 jet test. If both are required, obtain evidence of both, often shown as IP66/IP67, for the exact enclosure and assembled configuration. Select for the actual exposure rather than treating 67 as a universal upgrade from 66.

Buyers should also understand that the camera body rating may not include every part of the installation. A PoE security camera system depends on Ethernet connectors, junction boxes, cable glands, mounting bases, and wall penetrations. If the camera body is IP67 but the cable pigtail is left exposed under the eaves, water may enter through the connector and cause corrosion or failure. Many outdoor failures are caused by poor cable sealing rather than a defective camera enclosure.

Temperature is separate from IP rating. A camera can be IP66 but still have an operating temperature range unsuitable for very cold winters, hot roofs, desert sunlight, or freezer environments. Outdoor buyers should check minimum and maximum operating temperature, heater support, fan support, start-up temperature, and whether the device is rated for direct sun exposure.

Vandal resistance is also separate. IK ratings describe impact protection, not weather resistance. A camera in a public parking lot may need both IP66 or IP67 weather protection and IK10 vandal resistance. A camera under a residential porch may need weather protection but not a heavy vandal-rated enclosure.

Read the test, not only the two digits

IEC 60529, consolidated edition 2.2 (2013), is the enclosure IP-code standard. The published SANS adoption of IEC 60529:1989+A1:1999, clauses 6 and 14.2.6–14.2.8, distinguishes jet and immersion tests. Its earlier edition establishes the IP66/IP67/IP68 conditions below; it predates the 2013 water-digit-9 addition.

Relevant enclosure test boundaries
Designation	Exposure represented	What to verify
IP66	Dust-tight plus powerful water jets	IPX6 test: 12.5 mm nozzle, 100 L/min, 2.5–3 m distance, at least 3 minutes; this is not a hot pressure-washer approval
IP67	Dust-tight plus temporary immersion	IPX7: 30 minutes; for an enclosure under 850 mm high, its lowest point is 1 m below the water surface. It does not automatically include jet testing
IP68	Dust-tight plus continuous immersion under agreed conditions	Obtain stated conditions and intended use; do not infer an unlimited depth or operating duration
IEC IP69 / IPX9 water test	High-pressure, high-temperature water jets	Named standard/edition, report and permitted cleaning method; it is a different exposure from immersion
ISO IPX9K water test	Road-vehicle high-pressure/steam-jet cleaning category	Named ISO edition and complete designation; K is part of the applicable code, not a marketing synonym

The European Commission’s 2025 guidance, Figure 1 (IEC water-rating guide), identifies the IEC water-digit-9 category. ISO 20653:2023, Introduction and Scope, explicitly separates road-vehicle K requirements from IEC 60529; the ISO 20653:2013 preview, clause 6 and Table 4, shows the 9K cleaning category. ISO’s 2023 foreword notes revised IPX9K test conditions. Check the claimed edition; do not carry historical numerical test settings into a different edition without its report.

The figures above are a brief reading aid, not instructions to reproduce a certification test on an installed camera. Product test tolerances, configuration and acceptance conditions also matter. Ask for the exact model, laboratory/report reference, standard edition, tested glands/caps and mounting state. Where jets and immersion are needed, require the relevant separate evidence; do not infer lower jet coverage from an immersion or cleaning number.

Example: compare two exposure requirements

Planning example, not a certified installation: assume one entrance camera on a rain-exposed wall and one camera beside an area cleaned using hot pressurized water. For the wall, verify the enclosure rating, approved outdoor use, temperature range, mounting base, cable gland and sealed connector arrangement. For the cleaning area, provide the cleaner’s water temperature, pressure/flow, chemicals, distance and cleaning frequency to the supplier, and obtain explicit compatibility or relocate the camera outside the cleaning path.

Neither an IP66 wall enclosure nor an IP69/IPX9K label proves resistance to the site’s cleaning chemicals or aging seals. Keep the original temperature, impact, corrosion and condensation checks below. Photograph completed cable seals and water paths, record the installer’s approved parts and inspect after ordinary weather exposure. Do not use an improvised immersion or pressure-washer trial as commissioning.

Keep one environmental requirement record

Exact product and rated parts: housing, mount, junction box, connectors and cable entry configuration.
Exposure: rain/dust, temporary pooling, cleaning, salt/chemicals, sun, temperature and impact requirements separately.
Evidence: standard/edition, test-report reference and intended operating/installing limits.
Maintenance: allowed cleaning method, seal inspection, opening/reassembly instructions and named owner.

Features to compare

IP66 means the enclosure is dust-tight and protected against powerful water jets. It is common for outdoor security camera models mounted on walls, poles, soffits, loading docks, and building exteriors.

IP67 also means dust-tight, but the water test is different. It covers temporary immersion under defined conditions. This can help where short-term water exposure may be more severe, but it is not a guarantee for permanent underwater use.

IP68 concerns continuous immersion under agreed conditions; the depth, duration and intended operation must be stated. IEC 60529 uses water digit 9 for high-pressure, high-temperature jets; ISO 20653 uses K codes for road-vehicle requirements, including IPX9K. A catalogue label such as IP69K must be tied to its named standard, edition and report rather than treated as the IEC IP69 designation.

"Weatherproof" and "waterproof" are marketing words unless the specification explains them. "Weatherproof" usually means suitable for outdoor weather within product limits. "Waterproof" may imply more than the IP rating supports. The formal rating and installation guide are the safer sources.

Outdoor Ethernet connections need waterproof caps, sealed junction boxes, drip loops, proper glands, and weather-rated cable where exposed. The cable connection is often the weakest part of the installation.

Condensation control matters in wet or cold environments. Temperature changes can create condensation inside domes or housings if seals are damaged or installation is poor. Desiccant packs, proper sealing, and avoiding open cable paths can reduce the risk.

Corrosion resistance may matter near coasts, farms, chemical sites, and industrial yards. Salt fog and corrosive gases can damage screws, brackets, and connectors even when the camera has a good IP rating.

Sun exposure is a separate concern. Direct sunlight can heat camera housings beyond ambient temperature. Light-colored housings, sun shields, and careful placement may improve long-term performance.

Match equipment to the site requirements

For an exposed home camera, compare the enclosure’s documented protection with rain, dust, temperature and the manufacturer’s approved installation. An eave reduces some exposure but does not make an indoor product suitable outside. IP66 alone does not settle condensation, UV, salt exposure or connector sealing.

For a business surveillance system, the decision depends on environment. Retail storefronts, office entrances, and parking areas often use IP66 or IP67 cameras. Warehouses, loading docks, car washes, food processing areas, ports, and industrial yards may need stronger environmental review. If high-pressure cleaning is used nearby, standard IP66 may not be enough unless the camera and installation accessories are rated for that type of washdown.

Check the entire installation chain. Ask whether the camera, mounting bracket, junction box, cable gland, and connector cap are suitable for outdoor use. If a PoE camera has a short pigtail connector, place the connector inside a weatherproof junction box. Create a drip loop so water runs away from the connector rather than toward it. Seal wall penetrations to prevent water entering the building or traveling along the cable jacket.

Look at operating temperature and power draw. Some outdoor cameras with IR LEDs, heaters, or motorized lenses require more PoE power than basic indoor models. A PoE switch or NVR must have enough total power budget. If a PTZ camera includes motors, heater, and IR, it may require PoE+, Hi-PoE, or a separate power supply.

Review lens and dome material. Dome cameras may collect water spots, dust, salt, or scratches on the transparent cover. Bullet and turret cameras may shed water more easily in some installations. A dome can be useful where vandal resistance is important, but a turret can reduce IR reflection problems. The right form factor depends on weather, angle, and maintenance access.

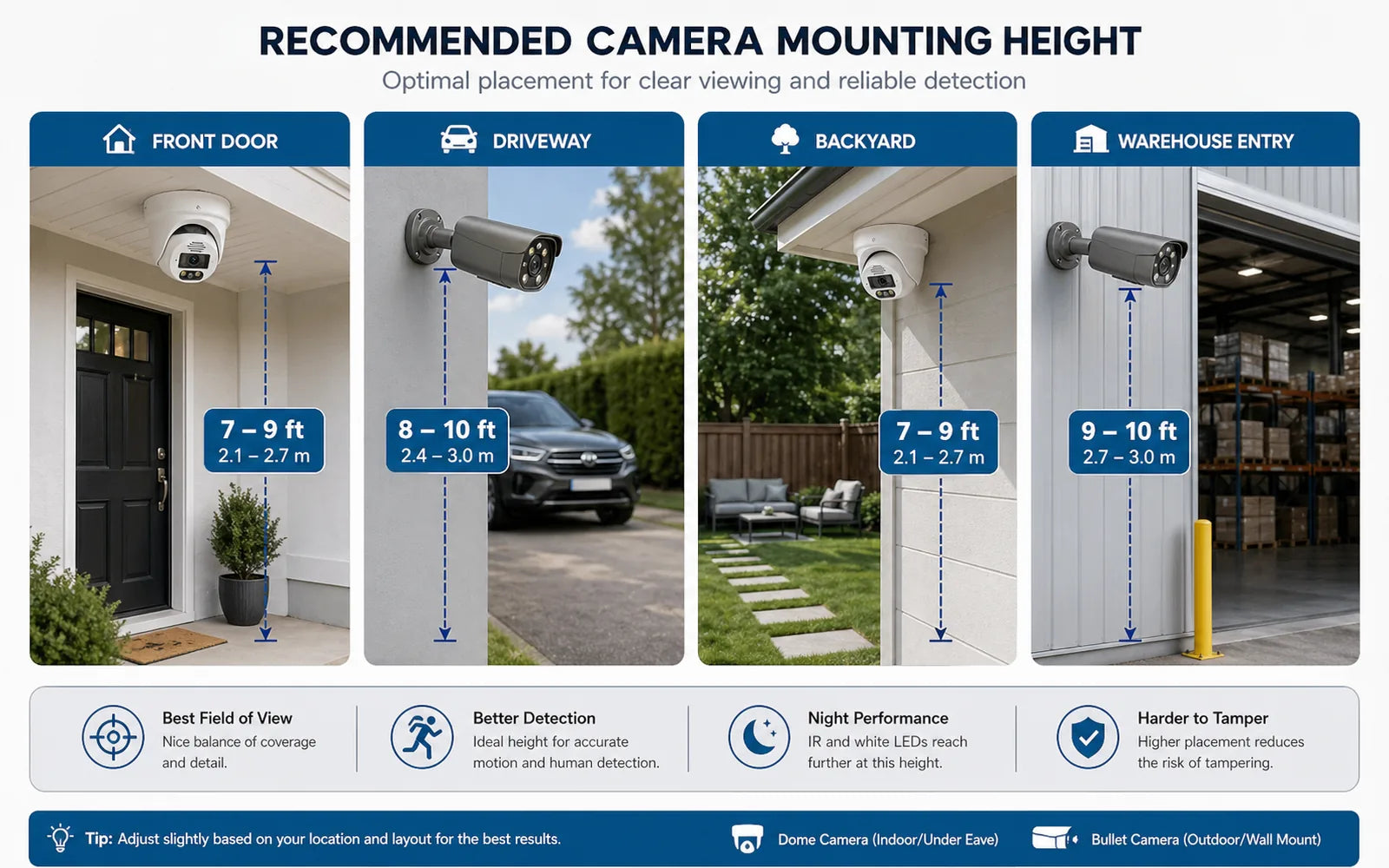

Think about future service. An outdoor security camera mounted too high or above a difficult roofline may be hard to clean, adjust, or replace. Maintenance access matters because weatherproof protection does not eliminate the need to clean lenses and inspect seals.

Common Applications

Residential outdoor systems use IP-rated cameras for front doors, garages, driveways, side gates, backyards, fences, and detached buildings. A small PoE security camera system with weather-rated turret cameras is common for homeowners who want stable recording.

Retail and office buildings use outdoor cameras for entrances, sidewalks, delivery doors, parking lots, waste areas, and exterior storage. These cameras often face mixed lighting: bright daylight, headlights, shadows, and nighttime darkness.

Warehouses and logistics sites use weatherproof cameras for loading docks, yard gates, trailer parking, perimeter fences, and outdoor inventory. Cameras may need strong IR, WDR, and stable mounting against vibration.

Industrial sites may need cameras resistant to dust, temperature, and corrosion. Standard commercial cameras may not be suitable if chemicals, salt spray, high heat, or explosive atmospheres are present.

Transportation and parking applications require protection against rain, dust, vibration, sunlight, vehicle headlights, and possible vandalism. A combination of fixed cameras and PTZ cameras may be used for wide area monitoring and incident review.

Common Problems

The most common problem is assuming IP66 or IP67 protects the cable connection automatically. In many installations, the camera housing is rated but the connector is not protected. Water enters through the RJ45 connection, causes corrosion, and the camera disconnects intermittently or fails completely.

Another problem is using indoor cable outdoors. UV exposure, moisture, and temperature changes can damage unsuitable cable jackets. Exposed cable should be rated for the environment, or installed inside conduit.

Condensation can appear inside a dome when seals are compromised or humid air is trapped during installation. This can blur the image, reflect IR light, and eventually damage electronics. Opening and closing camera housings in high humidity should be done carefully.

Overlooking operating temperature can also cause failures. A camera may survive rain but fail to start in extreme cold or overheat in direct sun. Buyers should check temperature ratings in addition to IP rating.

Cleaning methods can create problems. A camera rated for rain should not necessarily be cleaned with a pressure washer. High-pressure water may exceed the rating, force water into seals, or damage the lens cover.

Finally, poor mounting can defeat weather protection. Water can run along a wall into a mounting hole, collect in a junction box, or drip into a cable gland. Outdoor installation should control water paths, not simply attach a camera to a surface.

FAQ

What does IP66 mean for a security camera?
IP66 means the enclosure is dust-tight and protected against powerful water jets under defined test conditions. It is a common rating for outdoor cameras exposed to rain and dust.

What does IP67 mean?
IP67 means the enclosure is dust-tight and protected against temporary immersion under defined conditions. It may be useful where temporary water exposure is more severe than ordinary rain.

Is IP67 always better than IP66?
Not necessarily. IP67 focuses on temporary immersion, while IP66 focuses on powerful water jets. The right choice depends on the installation environment and manufacturer specifications.

Can an IP66 camera be installed outdoors?
Yes, many IP66 cameras are designed for outdoor use. Correct cable sealing, mounting, and operating temperature range are still important.

IP67 proves a temporary-immersion test, not approval for permanent underwater operation. IP68 also needs the agreed immersion conditions and the manufacturer’s intended-use statement; an enclosure test alone does not establish that a camera can operate underwater.

Do I need a junction box?
In many outdoor PoE camera installations, a junction box is strongly recommended to protect cable connectors and create a clean weather-sealed mounting point.

What is IK10?
IK10 is an impact resistance rating. It relates to physical impact, not water or dust. A public-area camera may need both IP and IK ratings.

Why does my outdoor camera fog up?
Fogging may be caused by condensation, damaged seals, trapped humidity, or temperature differences. Inspect seals, desiccant, cable openings, and dome cleanliness.

Weather ratings should be checked alongside installation practice, so pair this article with the outdoor security camera installation guide, the infrared vs white light camera comparison, and the night vision security camera guide. The checklist of common CCTV installation mistakes is also useful before drilling or sealing outdoor runs.

For exposed locations, compare QuarkView PTZ cameras, weather-ready installation accessories, and PoE switches and power accessories with the site's rain, dust, cable route, and service access requirements.

Summary

A weatherproof security camera rating is useful, but it is only part of the outdoor protection plan. IP66 and IP67 describe dust and water resistance under defined test conditions. They do not replace correct cable sealing, junction boxes, proper mounting, operating temperature review, corrosion awareness, or maintenance. For an outdoor security camera or PoE security camera system, evaluate the full installation environment as well as the number printed on the specification sheet.
