Introduction

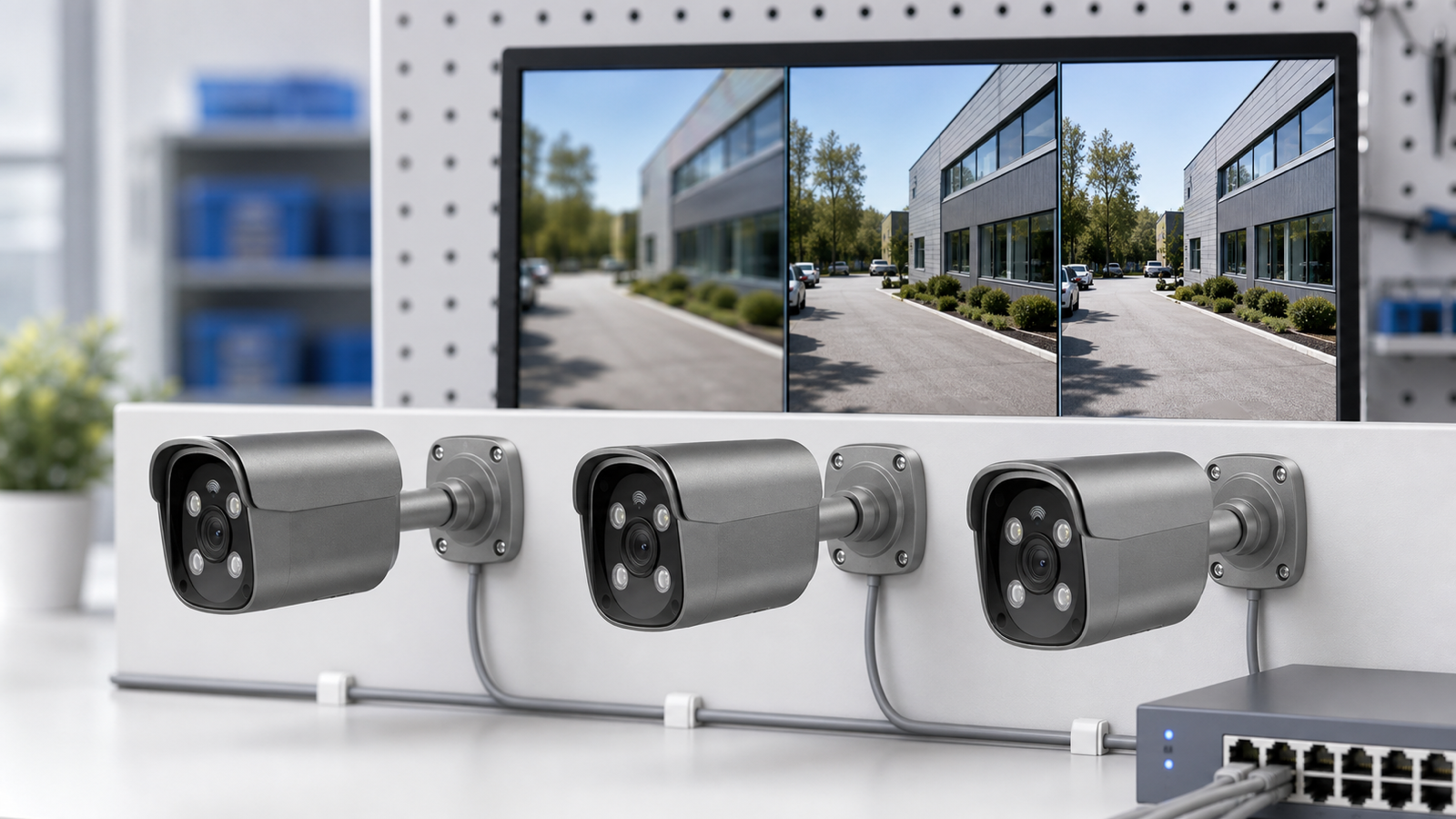

Comparing 4MP vs 5MP vs 8MP security cameras can be confusing because megapixels are easy to advertise but harder to interpret on a real site. A 4MP security camera, 5MP security camera, and 8MP security camera can all be the right choice in the right place. The suitable resolution depends on viewing distance, lens angle, lighting, storage, bandwidth, monitor resolution, and the type of evidence the buyer needs.
In security surveillance, more pixels can help capture more detail, but higher resolution is not automatically better. An 8MP outdoor security camera with poor lighting or excessive compression may produce less useful footage than a properly placed 4MP camera. A wide-angle high-resolution camera may cover a large area but still fail to identify a person far away. Buyers need to understand how resolution interacts with the rest of the surveillance system.
The useful comparison is not simply which number is larger. The question is how much detail reaches the target area after lens angle, light, compression, and distance have done their work.
Main Technical Explanation
Megapixels describe the approximate number of pixels in an image. A 4MP camera captures around four million pixels per frame. A 5MP camera captures around five million pixels. An 8MP camera, often called 4K in security marketing when the image is near 3840 by 2160 pixels, captures around eight million pixels.
More pixels allow the camera to record more image information. If the lens, focus, sensor quality, lighting, and compression are good, this can improve detail. However, pixels are distributed across the camera's field of view. A wide-angle 8MP camera may show a large parking area, but each distant face or license plate may still occupy only a small number of pixels. Conversely, a 4MP camera with a narrower lens aimed at a doorway may capture strong face detail.
Resolution also affects bitrate and storage. Higher-resolution video usually requires more data to preserve quality, especially in scenes with motion, rain, foliage, crowds, or changing light. H.265 compression can reduce storage compared with H.264 in many conditions, but the system still needs adequate NVR capacity and network bandwidth.
Sensor size and pixel size matter. Two cameras with the same megapixel rating can perform differently at night because of sensor quality, lens aperture, image processing, and illumination. Higher resolution on a small sensor can sometimes reduce low-light performance if each pixel receives less light. This is why buyers should evaluate sample footage and low-light specifications instead of assuming megapixels alone determine quality.
Frame rate is another factor. A camera may support maximum resolution at a lower frame rate, or the NVR may limit total decoding and recording performance. For most security applications, 15 to 20 frames per second can be usable, while faster motion may benefit from higher frame rates. A buyer should consider whether smooth motion or fine detail is more important.
Key Features or Concepts
Coverage and identification often pull in opposite directions. A 4MP camera is often effective for entrances, small rooms, corridors, and moderate-distance views. A 5MP camera provides a modest increase in detail and may use a 4:3 or different aspect ratio that is useful in some scenes. An 8MP camera helps in wide areas, larger spaces, or situations where digital zoom after recording is part of the review workflow.
Aspect ratio affects where the pixels go. Some 5MP cameras use a taller image shape than typical 16:9 cameras. This may be useful in corridors, doorways, or vertical scenes. An 8MP 4K camera often uses a 16:9 wide format, which suits horizontal coverage but may waste pixels on walls or sky if mounted poorly.
Pixels per foot, or pixels per meter, is a better design metric than megapixels alone. It describes how much image detail falls on the subject of interest. Security design often uses categories such as detection, observation, recognition, and identification. Exact requirements vary by standard and project, but the principle is stable: detail at the target matters more than total megapixels.
Low-light performance can change the answer. A night vision camera with 8MP resolution needs enough light, IR strength, or visible illumination to support the pixel count. In dark scenes, noise reduction may soften detail. A lower-resolution camera with a larger sensor or better lens may perform better at night.
System load rises with resolution. More pixels mean more storage, more processing, and more network demand. A PoE security camera system with several 8MP cameras needs an NVR and switch infrastructure designed for that load.
Buying Considerations
For small rooms, doorways, counters, and home entrances, 4MP is often a balanced choice. It provides more detail than basic 1080p while keeping storage and bandwidth manageable. It fits many home security camera systems and small business views.
For buyers who want a middle option, 5MP can be attractive when the image format matches the scene. A 5MP IP camera may provide useful extra detail without the storage increase of 8MP. It can be good for indoor business views, reception areas, small warehouses, and exterior building approaches.
Choose 8MP when the scene benefits from wide coverage and higher detail. Parking lots, yards, warehouse floors, large retail spaces, and wide exterior walls may benefit from 8MP cameras. The result is strongest when lighting is good, the lens is appropriate, and the NVR security system has enough storage and decoding capacity.
Do not evaluate resolution without lens. A varifocal 4MP camera can outperform a fixed wide-angle 8MP camera for a specific gate or entrance because it concentrates pixels where they are needed. If the goal is face capture, a targeted camera is usually better than one very wide overview camera.
Storage planning is essential. Ask for estimates based on resolution, codec, bitrate, frame rate, recording schedule, and retention. If budget is limited, it may be better to use 8MP cameras only in critical wide areas and use 4MP or 5MP cameras elsewhere.
Monitor and playback workflow matters too. Viewing many 8MP channels at once may require downscaled substreams. Exporting and reviewing large files can take more time. For business surveillance system users, usability matters as much as specification.
Common Applications
4MP cameras are commonly used for home entrances, garages, side yards, small offices, retail counters, hallways, and indoor rooms. They provide a strong balance of detail and efficiency.
5MP cameras are often used in scenes where a bit more detail or a different aspect ratio is helpful. They may be suitable for lobbies, corridors, store aisles, small warehouses, and mixed indoor-outdoor views.
8MP security cameras are common for larger outdoor security camera views, parking areas, wide driveways, warehouses, public entrances, and overview scenes where digital zoom can help during playback. They can reduce camera count in some wide areas, but they do not replace proper camera placement.
In AI surveillance deployments, resolution can support object detection accuracy, but it is not the only factor. The camera still needs clear view, proper mounting angle, stable lighting, and correctly configured detection zones.
Common Problems
One problem is overbuying resolution and underbuying storage. An 8MP system with too little storage may keep fewer days of footage than expected. Reducing bitrate too aggressively can create compression artifacts that defeat the purpose of higher resolution.
Another issue is poor night detail. Buyers may expect 8MP night footage to look like daytime video. In reality, darkness, rain, fog, insects, and reflective surfaces can limit performance. The night vision camera design must match the scene.
Wide-angle distortion can also reduce evidence quality. A wide lens may capture more area but make people and objects near the edge appear distorted or small. Proper lens selection is part of resolution planning.
NVR compatibility can be a limitation. Some recorders support a certain number of 8MP channels only at reduced frame rates or may struggle with live view decoding. Buyers should check recording, playback, and display capabilities.
Buyers sometimes use digital zoom as a substitute for optical planning. Digital zoom enlarges existing pixels; it does not create detail that was never captured. If a gate, cash drawer, or license plate is important, dedicate a camera view to it.
FAQ
Is 8MP always better than 4MP?
No. 8MP provides more pixels, but lighting, lens, bitrate, sensor quality, and placement determine useful detail.
Is 5MP worth choosing over 4MP?
It can be, especially when the camera's image shape and lens fit the scene. The improvement is moderate, not dramatic.
Do higher megapixels use more storage?
Usually yes. Higher resolution generally increases bitrate and storage needs, although codec and settings influence the final amount.
What resolution is best for a home security camera?
Many homes do well with 4MP or 5MP cameras for entrances and yards. 8MP may be useful for wide driveways or large exterior areas.
Can 8MP cameras read license plates?
Only if the camera is positioned, lensed, exposed, and configured for plate capture. A wide overview 8MP camera may not be enough for moving vehicles or night plates.
How QuarkView Can Help
Resolution should be matched to the rest of the system, so use this article with IP camera buying guide, night vision performance guide, full color night vision guide, and outdoor placement guide before deciding whether more pixels will actually improve identification in the target scene.
When comparing QuarkView equipment, check single PoE cameras, PoE camera systems, and AI camera systems to align resolution, recording capacity, and AI detection with the coverage goal.
QuarkView note: QuarkView can help compare 4MP, 5MP, and 8MP options against the real distance and lighting of each camera position so buyers do not overpay for pixels that will not improve evidence.
Summary
The choice between 4MP vs 5MP vs 8MP security cameras should be based on target detail, field of view, lighting, storage, and installation design. 4MP is a solid general-purpose resolution, 5MP gives a moderate detail increase and sometimes a useful aspect ratio, and 8MP makes sense for wide or detail-demanding scenes when the system can support it. Megapixels should follow the camera view, not drive it.
Reference Sources
- ITU-T H.264 and ITU-T H.265 for video compression standards.
- ONVIF Profiles for IP camera and recorder interoperability.
- IEC 62676-4 overview at IEC for video surveillance application guideline context.
- NIST IR 8259A for cybersecurity considerations in connected cameras.
- CISA IoT Security for secure deployment practices.
