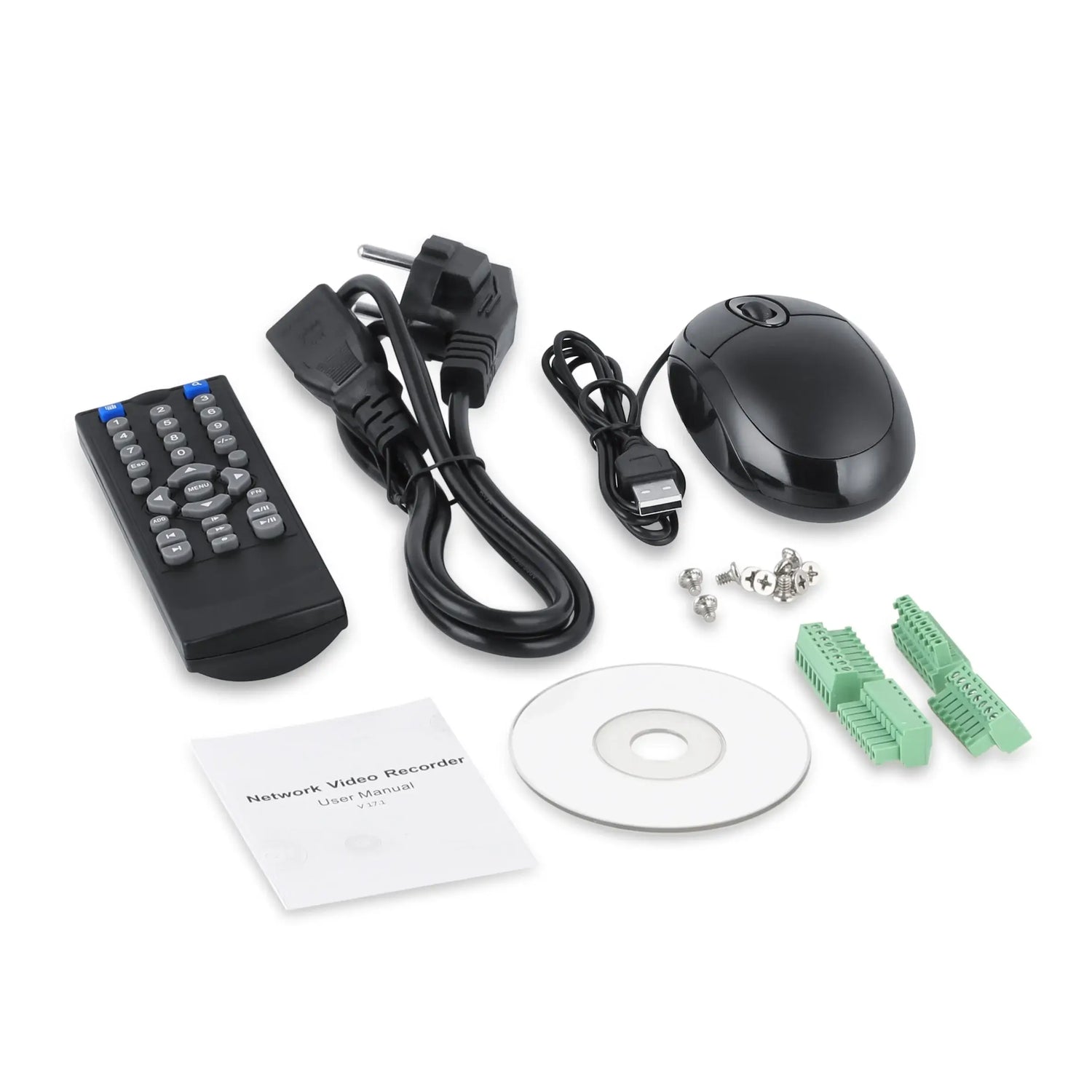

What is included
- 6916K recorder in the selected No HDD / 3TB / 4TB QuarkView configuration.
- Power and installation parts follow the supplied packing list.

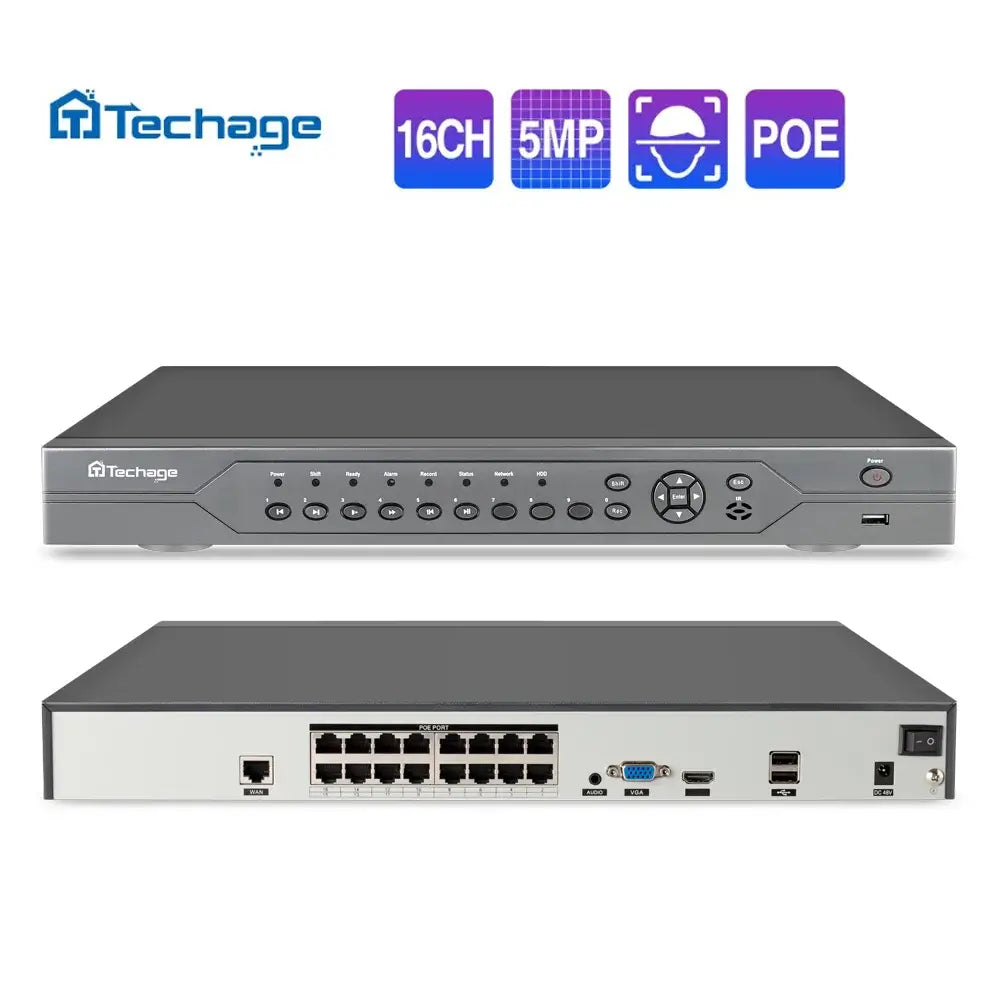

QuarkView 6916K PoE NVR
A PoE recorder with listed 16-channel 5MP and 8-channel 4K input modes, two SATA interfaces and audio input/output.
QuarkView · XM-6916K
$289–$399
USD
Listed price per package / product; final price and shipping confirmed in the quote.
01 / 02

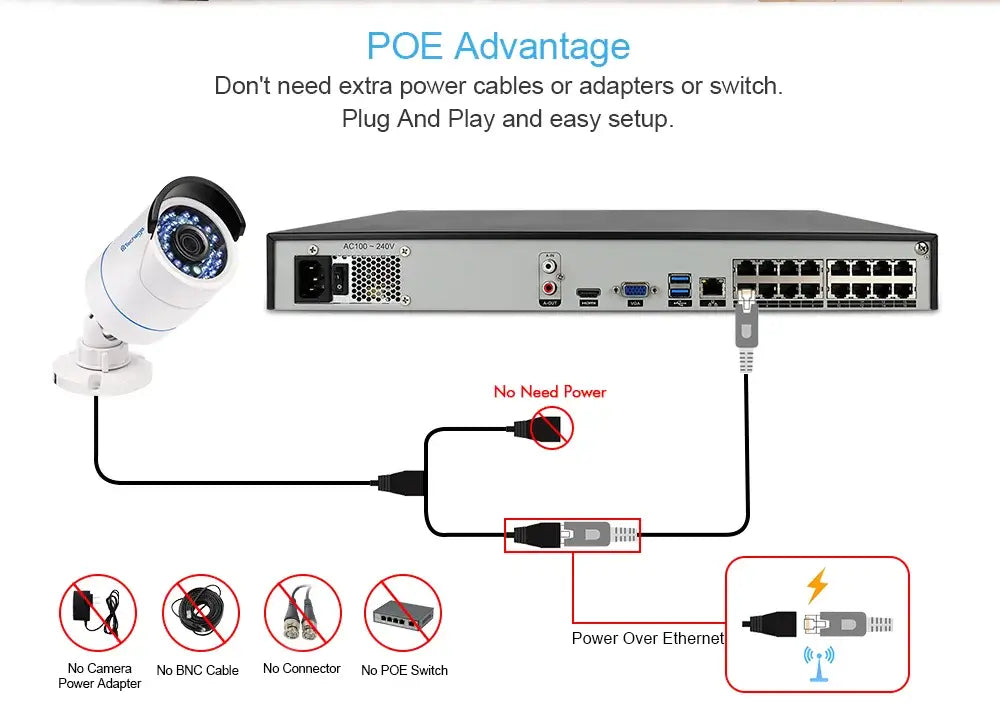

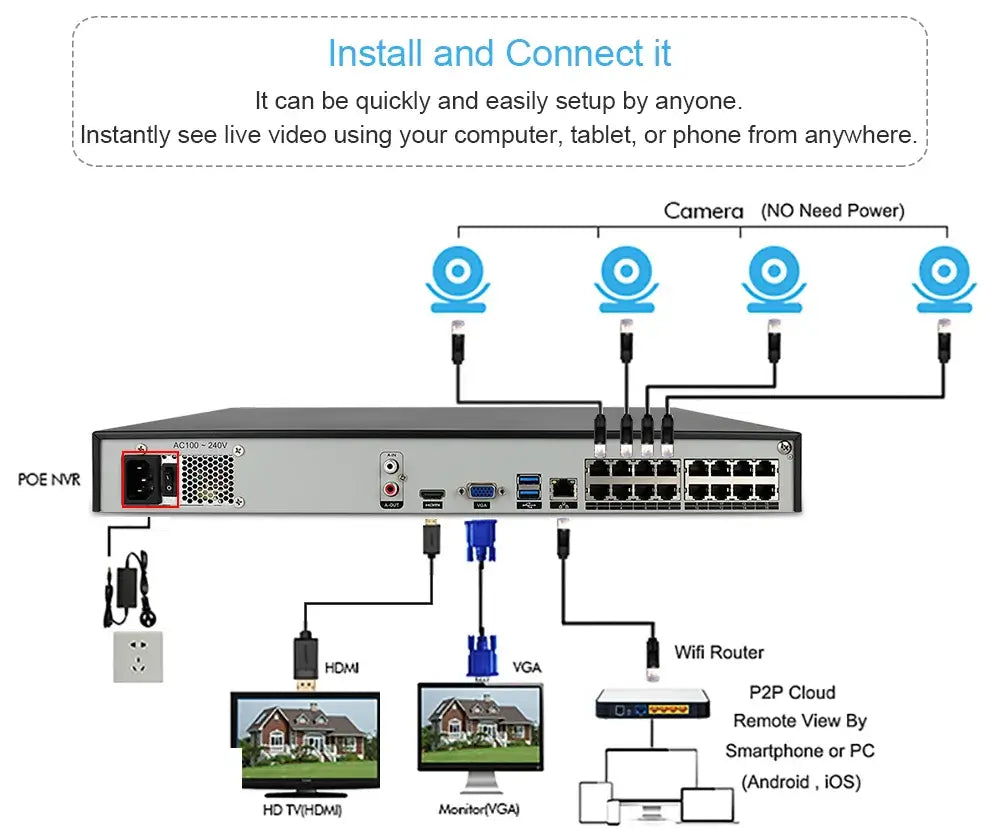

Installation or connection diagram — illustration
Best fit
- Recorder replacement
- Recording-system planning
Plan your configuration: Choose your preferred option and include any existing equipment, installation needs and delivery destination in your quote.
Model XM-6916K
Listed input modes 16CH 2MP/3MP/5MP or 8CH 4K
HDD interfaces 2 SATA
Listed playback 8CH 2MP/3MP or 4CH 5MP
Product features
- Listed input modes: 16CH 2MP/3MP/5MP or 8CH 4K
- HDD interfaces: 2 SATA
- Listed playback: 8CH 2MP/3MP or 4CH 5MP
Product overview
Product details
A PoE recorder with listed 16-channel 5MP and 8-channel 4K input modes, two SATA interfaces and audio input/output.
- Choose an input mode for the camera resolution mix; sixteen channels do not establish sixteen simultaneous 4K streams.
- Use the playback modes separately from the recording-channel plan.
- Choose supported drives after the capacity limit is resolved, then calculate retention with measured bitrate.
Model questions
Does it record sixteen 4K cameras?
The input modes are eight 4K channels or sixteen 5MP channels; sixteen simultaneous 4K streams are not established.
What is the maximum HDD capacity?
The supported drive capacity still requires confirmation for the supplied recorder revision.
Choose recorder channels and powered ports · Estimate recording storage · Calculate camera bandwidth · Install and commission a wired system
Specifications
Check the details that affect performance.
Prepare your quote with the model, camera quantity, resolution, storage and detection features you need. Include existing equipment and compatibility requirements so we can match the configuration to your installation.
| Model | XM-6916K |
|---|---|
| Listed input modes | 16CH 2MP/3MP/5MP or 8CH 4K |
| HDD interfaces | 2 SATA |
| Listed playback | 8CH 2MP/3MP or 4CH 5MP |
| Audio | Input and output listed |
Compare listed configurations
Choose your configuration
Compare the listed options. Confirm the exact model and configuration with sales.
- NO HDD · US WarehouseXM-6916K $289 Request a Quote
- With 3TB · US WarehouseXM-6916K-3T $379 Request a Quote
- With 4TB · US WarehouseXM-6916K-4T $399 Request a Quote
Best fit
- Recorder replacement
- Recording-system planning
Before you order
Use these checks to avoid compatibility, storage, and installation surprises.
- Recorder model and camera count
- Recording resolution, frame rate and PoE layout
- HDD option and recording days target
Manuals and App
- PoE recorder family manual — English (PDF) (opens a new tab)
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
- recorder: XMEye Pro — Android (opens a new tab)
- recorder: XMEye Pro — iOS (opens a new tab)
- QuarkView setup support (opens a new tab)
Model FAQ
Does it record sixteen 4K cameras?
The input modes are eight 4K channels or sixteen 5MP channels; sixteen simultaneous 4K streams are not established.
What is the maximum HDD capacity?
The supported drive capacity still requires confirmation for the supplied recorder revision.
Request a quote
Choose your product and quantity.
This product is already selected. Send the form for a quote, configuration review, and shipping options. Submitting does not place an order.
Need a quick product answer first? Email sales@quarkview.com.
1
Product selected
XM-6916K is carried into the request automatically.
2
Choose the quantity
Buy one system, compare configurations, or prepare a repeat order.
3
Review the quote
Confirm the configuration, shipping, and terms before deciding whether to order.
