What is included
- 16 cameras in the matching base configuration
- 16-channel recorder
- Recording drive: 3TB in the listed configuration
QuarkView 16CH PT825G PoE System with 3TB HDD
Plan sixteen wired camera positions with PT825G cameras, a 16-channel recorder and the listed 3TB drive. Choose the 5MP -50P configuration or its separate 8MP -80P option for the required scene detail.
QuarkView · 6916K-16-PT825G-50P-3T-CP
$889–$1,080
USD
Listed price per package / product; final price and shipping confirmed in the quote.
01 / 02
16-camera system reference; recording drive selected separately
Best fit
- Multi-entrance business sites
- Medium warehouse and yard layouts
- Wired projects requiring sixteen camera positions
Plan your configuration: Choose your preferred option and include any existing equipment, installation needs and delivery destination in your quote.
Model PT825G-50P
Connection Wired PoE
Camera resolution 5MP (-50P); 8MP (-80P) separate variant
NVR channels 16
Product features
- PoE Ethernet connection
- Remote mechanical pan and tilt
- Human detection
- Two-way audio
- Infrared and white-light night modes
- Human auto-tracking
Product overview
Product details
Plan sixteen wired camera positions with PT825G cameras, a 16-channel recorder and the listed 3TB drive. Choose the 5MP -50P configuration or its separate 8MP -80P option for the required scene detail.
Aim the camera at the part that matters

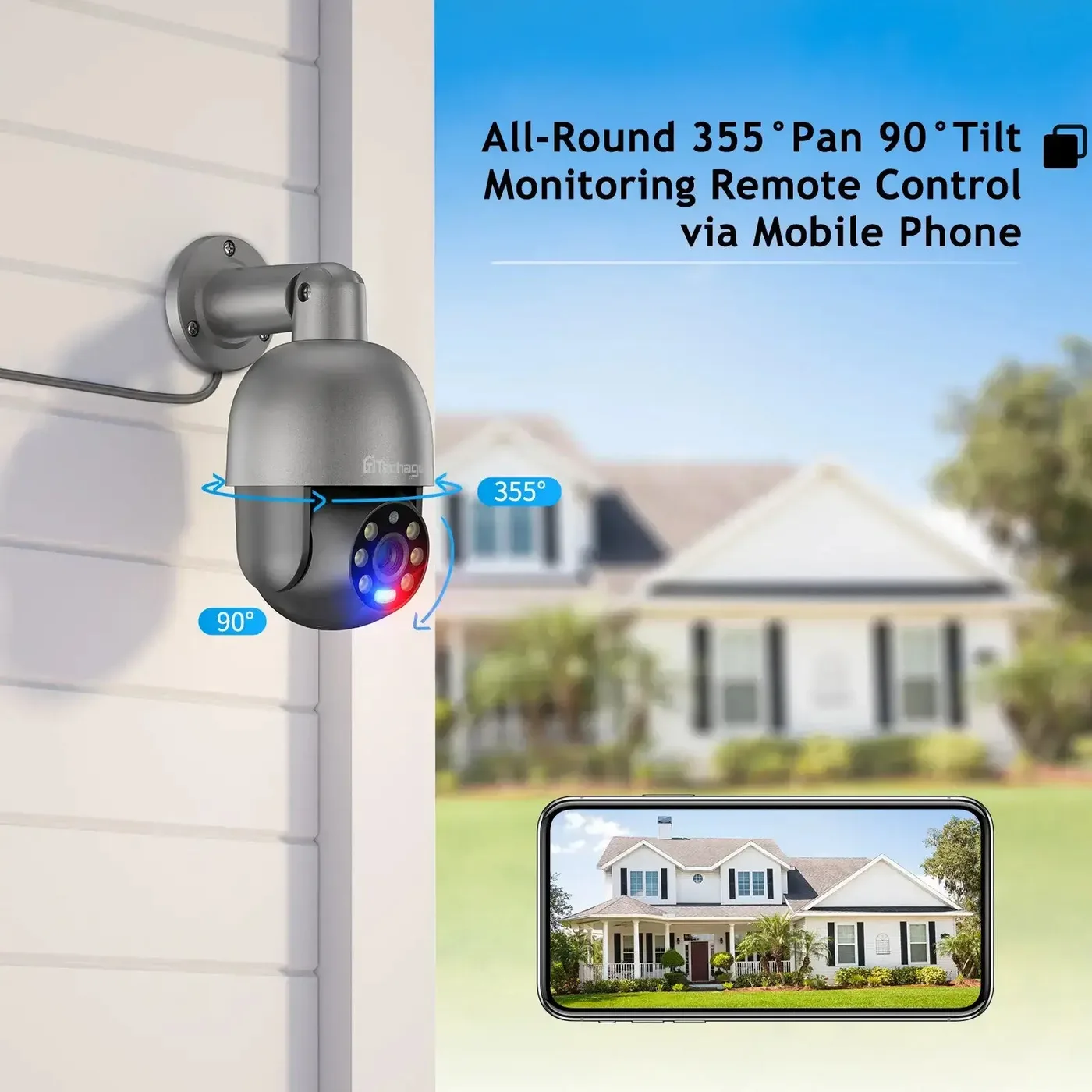

Mechanical pan and tilt lets you inspect another part of the entrance or yard. Camera movement changes direction; it does not create a stitched panoramic image or prove optical zoom.
Track activity in a defined area
Use human tracking for movement through a clear viewing area. Set the working view around the approach and keep obstructions out of the path.
Choose the night behavior and talk through the camera
A built-in microphone and speaker support two-way talk. Infrared viewing and white-light color modes serve different lighting needs. White illumination is used for the color night view; evaluate the installed view at the actual target distance.
Connect power and plan the recording
Connect each camera to a suitable PoE NVR port or powered switch over Ethernet. The 16CH recorder and supplied camera quantity are separate limits. Size the drive using recorded bitrate and retention needs.
Selected configuration
- 16 cameras in the matching base configuration
- 16-channel recorder
- Recording drive: 3TB in the listed configuration
Setup and software
iCSee handles camera setup and viewing. The recorder manual uses XMEye Pro for NVR access. Camera and recorder connections are separate entries.
Does pan and tilt mean optical zoom?
No. Pan and tilt moves the camera direction. An optical zoom lens changes focal length; no optical zoom ratio is specified for this model.
Can one movable camera cover every direction continuously?
It records the direction it faces. Add fixed overview cameras where an entrance or working area must remain visible throughout movement.
Does this camera need Wi-Fi?
No. The listed PoE configuration uses Ethernet for the network connection and a compatible PoE source for power.
What do the recorder channels and camera quantity mean?
The matching base configuration has 16 cameras and a 16-channel recorder. Channel capacity is separate from supplied cameras and physical powered ports.
How long will the hard drive record?
Recording time depends on total recorded bitrate, recording mode and usable drive capacity. Use the storage calculator with your chosen stream settings.
What should be checked with another NVR?
Test saved video, audio, pan/tilt control and the required events independently. Protocol support alone does not establish every function with a third-party recorder.
Practical guides
- PTZ controls and coverage — Separate mechanical movement, presets and continuous coverage.
- Set up and assess human tracking — Plan triggers, occlusion and return behavior.
- Size NVR recording storage — Calculate retention from recorded bitrate and recording mode.
- Install a PoE camera system — Plan protected cable entries and a powered network connection.
Specifications
Check the details that affect performance.
Prepare your quote with the model, camera quantity, resolution, storage and detection features you need. Include existing equipment and compatibility requirements so we can match the configuration to your installation.
| Model | PT825G-50P |
|---|---|
| Connection | Wired PoE |
| Camera resolution | 5MP (-50P); 8MP (-80P) separate variant |
| NVR channels | 16 |
| Camera quantity | 16 |
| HDD options | 3TB |
| Video codec | H.265+ |
| ONVIF | Protocol support listed; feature availability depends on recorder and firmware |
| Audio | Built-in microphone and speaker; two-way talk listed |
Compare listed configurations
Choose your configuration
Compare the listed options. Confirm the exact model and configuration with sales.
- 5MP6916K-16-PT825G-50P-3T-CPCameras supplied: 16 · Recording drive: 3TB $889 Request a Quote
- 8MP6916K-16-PT825G-80P-3T-CPCameras supplied: 16 · Recording drive: 3TB $1,080 Request a Quote
Best fit
- Multi-entrance business sites
- Medium warehouse and yard layouts
- Wired projects requiring sixteen camera positions
Before you order
Use these checks to avoid compatibility, storage, and installation surprises.
- Viewing distance and mounting height
- Preset patrol or manual control
- Lighting and night-vision expectations
Manuals and App
- PT825 PoE camera family manual — English (PDF) (opens a new tab)
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
- PoE system family manual — English (PDF) (opens a new tab)
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
- PoE recorder family manual — English (PDF) (opens a new tab)
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
- recorder: XMEye Pro — Android (opens a new tab)
- recorder: XMEye Pro — iOS (opens a new tab)
- camera: iCSee — Android (opens a new tab)
- camera: iCSee — iOS (opens a new tab)
- QuarkView setup support (opens a new tab)
Model FAQ
Does pan and tilt mean optical zoom?
No. Pan and tilt moves the camera direction. An optical zoom lens changes focal length; no optical zoom ratio is specified for this model.
Can one movable camera cover every direction continuously?
It records the direction it faces. Add fixed overview cameras where an entrance or working area must remain visible throughout movement.
Does this camera need Wi-Fi?
No. The listed PoE configuration uses Ethernet for the network connection and a compatible PoE source for power.
What do the recorder channels and camera quantity mean?
The matching base configuration has 16 cameras and a 16-channel recorder. Channel capacity is separate from supplied cameras and physical powered ports.
How long will the hard drive record?
Recording time depends on total recorded bitrate, recording mode and usable drive capacity. Use the storage calculator with your chosen stream settings.
What should be checked with another NVR?
Test saved video, audio, pan/tilt control and the required events independently. Protocol support alone does not establish every function with a third-party recorder.
Request a quote
Choose your product and quantity.
This product is already selected. Send the form for a quote, configuration review, and shipping options. Submitting does not place an order.
Need a quick product answer first? Email sales@quarkview.com.
1
Product selected
6916K-16-PT825G-50P-3T-CP is carried into the request automatically.
2
Choose the quantity
Buy one system, compare configurations, or prepare a repeat order.
3
Review the quote
Confirm the configuration, shipping, and terms before deciding whether to order.
