What is included
- One 605GP-AI-80N camera
- Select the NVR, recording drive and cabling separately
QuarkView 605GP 4K 8MP Outdoor PoE Camera
Add one 605GP-AI-80N camera with 8MP / 4K video at 15fps, a 3.6mm fixed lens, person and vehicle detection, two-way audio and red/blue warning lights.
QuarkView · TA-XM-605GP-AI-80N
$48.99
USD
Listed price per package / product; final price and shipping confirmed in the quote.
01 / 05
Device exterior
Best fit
- Driveways and outdoor entrances
- Fixed yard and loading-door views
- Compatible wired system expansion
Plan your configuration: Choose your preferred option and include any existing equipment, installation needs and delivery destination in your quote.
Model TA-XM-605GP-AI-80N
Resolution 8MP / 4K
Frame rate 15fps at 8MP / 4K
Lens 3.6mm fixed; listed viewing angle 90°
Product features
- 8MP / 4K at 15fps
- 3.6mm fixed lens; listed 90° view
- Person/vehicle detection
- Two-way audio and visible warning lights
Product overview
Product details
A detailed fixed view for one position
This single-camera listing is the AI-80N 8MP model. Its 3.6mm lens provides the fixed view and the source lists 15fps at 8MP. Use it for a doorway, driveway or yard position with a clear cable route to the recording system.
See activity and respond after dark
Two infrared and two white LEDs support night illumination. Red/blue warning lights provide a visible response, while the microphone and speaker enable conversation. Person and vehicle detection focuses alerts on relevant activity; line and face detection are also listed.
Installation and support
Connect the camera to a suitable PoE source and the recording network. Aim the live view at the intended position, protect the Ethernet connection and set recording on the compatible recorder. The QuarkView guides below explain the relevant installation and integration steps.
Model questions
Is this a camera-and-recorder kit?
No. It is the single camera for replacement or expansion.
Is 15fps specified at 8MP?
Yes. The model specification gives 15fps at 8MP / 4K; it does not specify 30fps at that resolution.
Does vehicle detection read number plates?
Vehicle events are listed. Automatic number-plate recognition is not established for this camera.
Practical guides
- 4MP, 5MP and 8MP: choose the recording view
- Choose infrared or illuminated colour at night
- Connect a camera to a compatible NVR
- Install and commission a wired PoE system
QuarkView 605GP 8MP PoE Camera Kit with 8CH NVR · QuarkView DM27SP 8MP Dome PoE Camera
Specifications
Check the details that affect performance.
Prepare your quote with the model, camera quantity, resolution, storage and detection features you need. Include existing equipment and compatibility requirements so we can match the configuration to your installation.
| Model | TA-XM-605GP-AI-80N |
|---|---|
| Resolution | 8MP / 4K |
| Frame rate | 15fps at 8MP / 4K |
| Lens | 3.6mm fixed; listed viewing angle 90° |
| Audio | Microphone and speaker; two-way |
| Detection | Human, vehicle, line and face functions listed |
| Night lights | 2 IR + 2 white LEDs; red/blue warning lights |

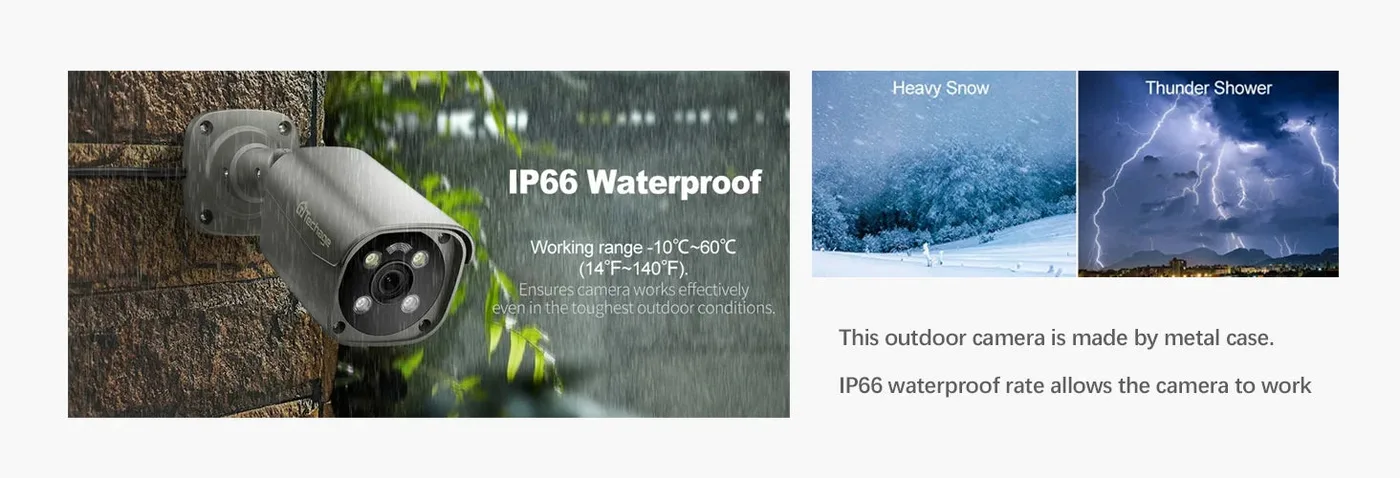

| Housing | IP66 metal |
| Connection | PoE or DC12V input |
| Protocols | ONVIF and RTSP listed |
Compare listed configurations
Choose your configuration
Compare the listed options. Confirm the exact model and configuration with sales.
- 8MP · 2 Way Audio · US WarehouseTA-XM-605GP-AI-80N $48.99 Request a Quote
Best fit
- Driveways and outdoor entrances
- Fixed yard and loading-door views
- Compatible wired system expansion
Before you order
Use these checks to avoid compatibility, storage, and installation surprises.
- Camera count and cable length
- NVR channel and storage target
- Indoor/outdoor camera mix
Manuals and App
- Fixed PoE camera family manual — English (PDF) (opens a new tab)
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
- camera: XMEye Pro — Android (opens a new tab)
- camera: XMEye Pro — iOS (opens a new tab)
- QuarkView setup support (opens a new tab)
Model FAQ
Is this a camera-and-recorder kit?
No. It is the single camera for replacement or expansion.
Is 15fps specified at 8MP?
Yes. The model specification gives 15fps at 8MP / 4K; it does not specify 30fps at that resolution.
Does vehicle detection read number plates?
Vehicle events are listed. Automatic number-plate recognition is not established for this camera.
Request a quote
Choose your product and quantity.
This product is already selected. Send the form for a quote, configuration review, and shipping options. Submitting does not place an order.
Need a quick product answer first? Email sales@quarkview.com.
1
Product selected
TA-XM-605GP-AI-80N is carried into the request automatically.
2
Choose the quantity
Buy one system, compare configurations, or prepare a repeat order.
3
Review the quote
Confirm the configuration, shipping, and terms before deciding whether to order.
