What is included
- One wireless IP camera
- One power adapter
- One user manual
- One screw pack
- 64GB microSD card only in the selected card option

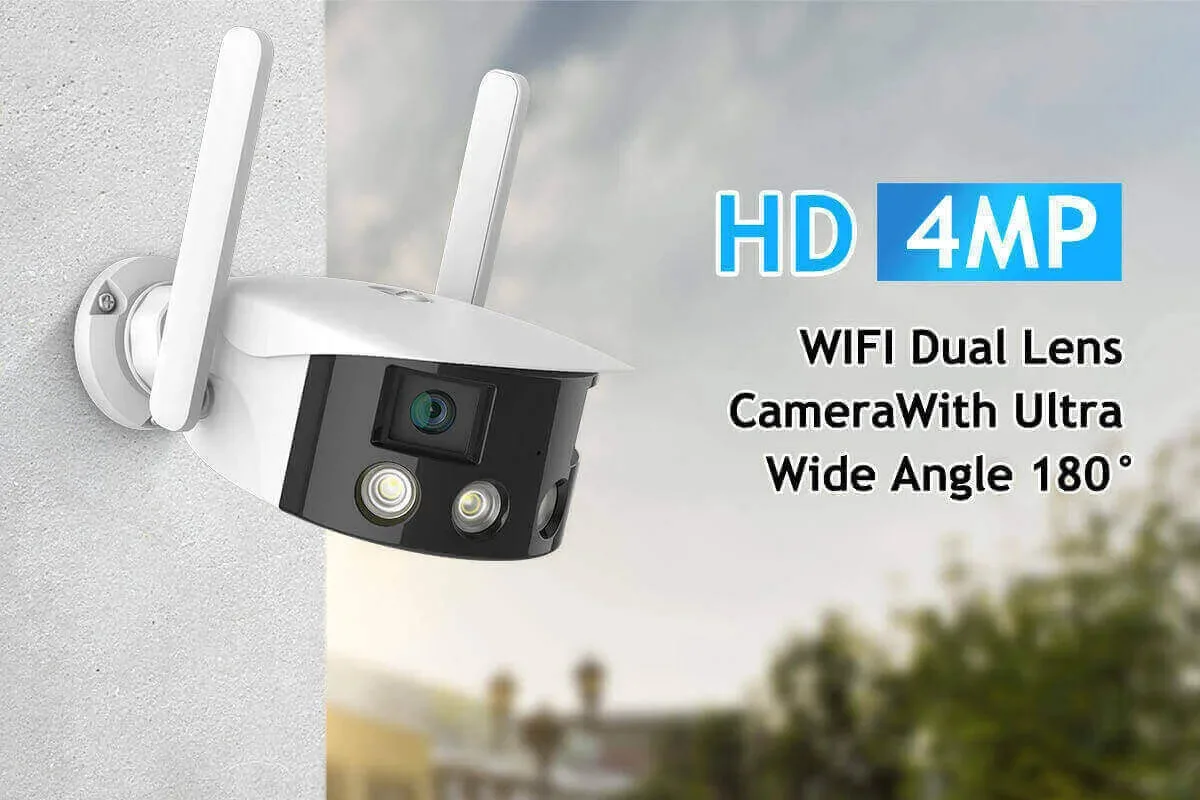

QuarkView N4D2 4MP Dual-Lens Wide-Angle Camera
The QuarkView N4D2 gives a broad fixed view of an entrance, frontage or yard. Its two 2MP sensors and two 4mm lenses provide a 180-degree view, with human alerts, two-way audio and microSD storage.
QuarkView · XM-N4D2-40W
$64.99–$69.99
USD
Listed price per package / product; final price and shipping confirmed in the quote.
01 / 09

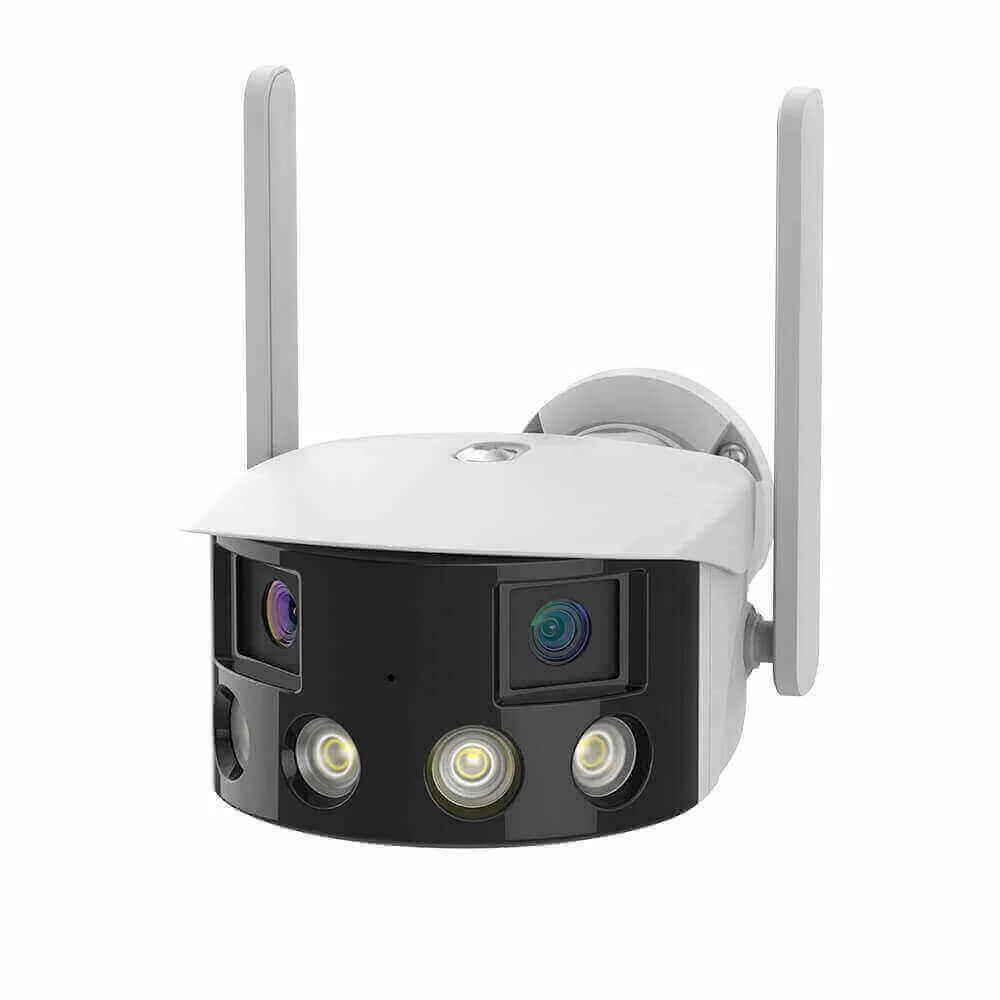

Device exterior
Best fit
- Broad frontage views
- Driveway and yard overviews
- Entrances that need a fixed wide view
Plan your configuration: Choose your preferred option and include any existing equipment, installation needs and delivery destination in your quote.
Model XM-N4D2-40W
Resolution Two 2MP sensors; 4MP combined
Lens Two 4mm lenses
Viewing angle 180°
Product features

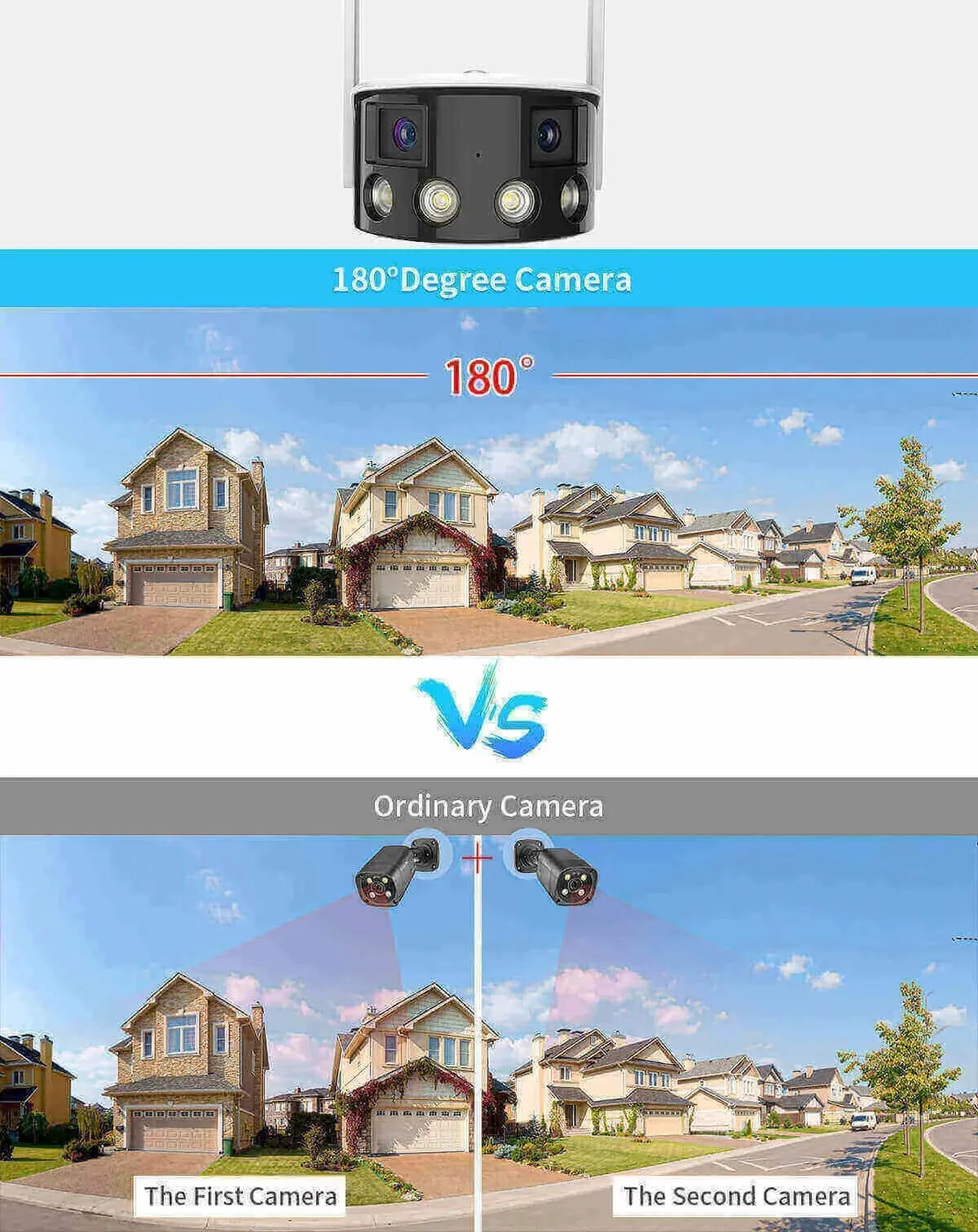

- 180-degree viewing angle
- Two 2MP sensors; 4MP combined
- Two 4mm lenses
- Human alerts and siren
- Two-way audio
- microSD storage up to 128GB

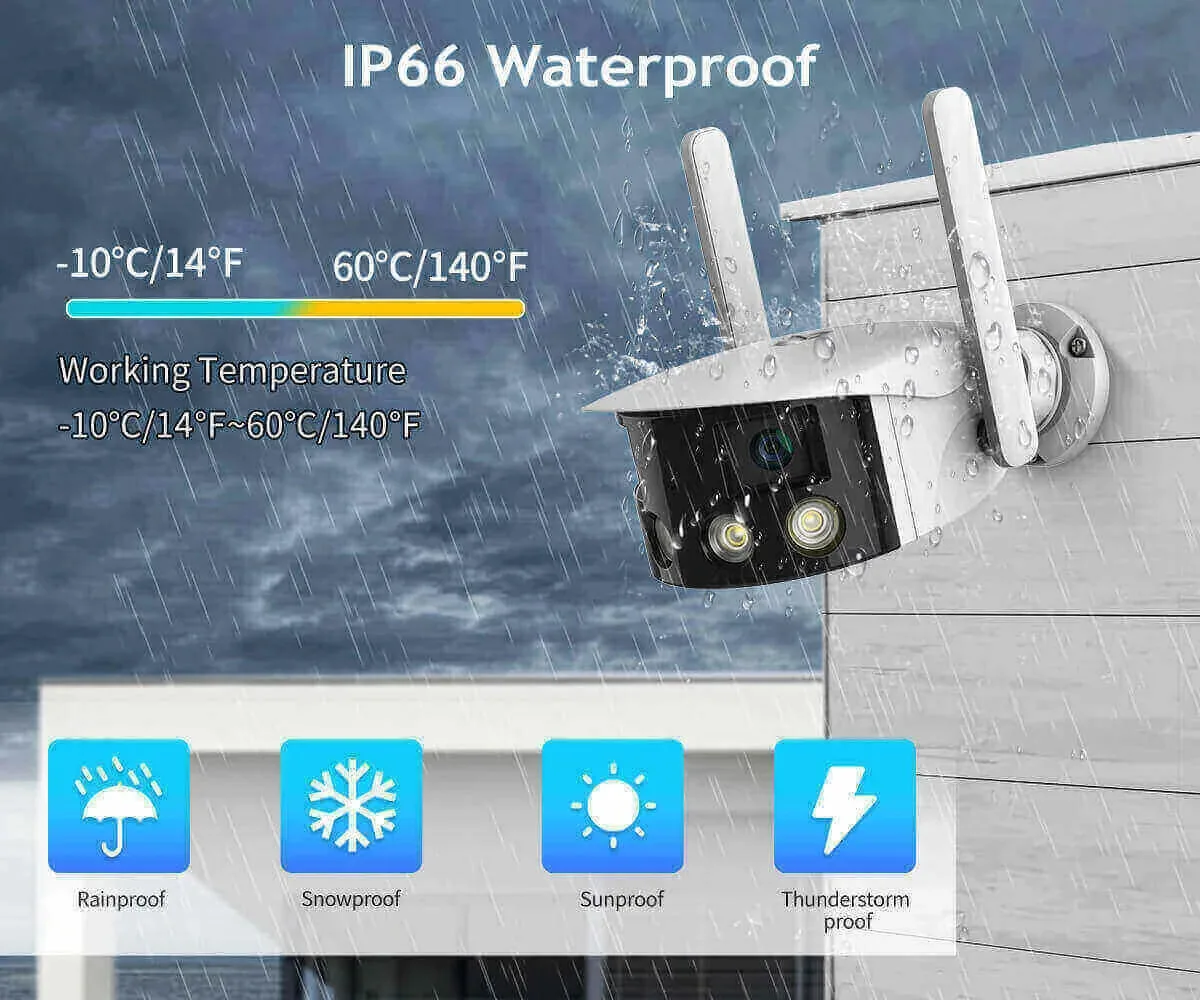

- IP66 ABS housing
Product overview
Product details
The QuarkView N4D2 gives a broad fixed view of an entrance, frontage or yard. Its two 2MP sensors and two 4mm lenses provide a 180-degree view, with human alerts, two-way audio and microSD storage.
Power and maintenance
Use the supplied power adapter and match its input requirements. The wireless network connection does not supply power.
Network and recording
Check the wireless connection at the proposed position and test playback before fixing the mount. Use a supported microSD card up to 128GB for local footage, or review the intended NVR combination. ONVIF support does not establish every recording, audio or event function with a third-party recorder.
Installation and setup
Keep the two lenses clear of nearby walls and light reflections. Test useful detail across the wide view and replay a saved clip. Use the supplied guide and app information for this camera revision.
Model questions

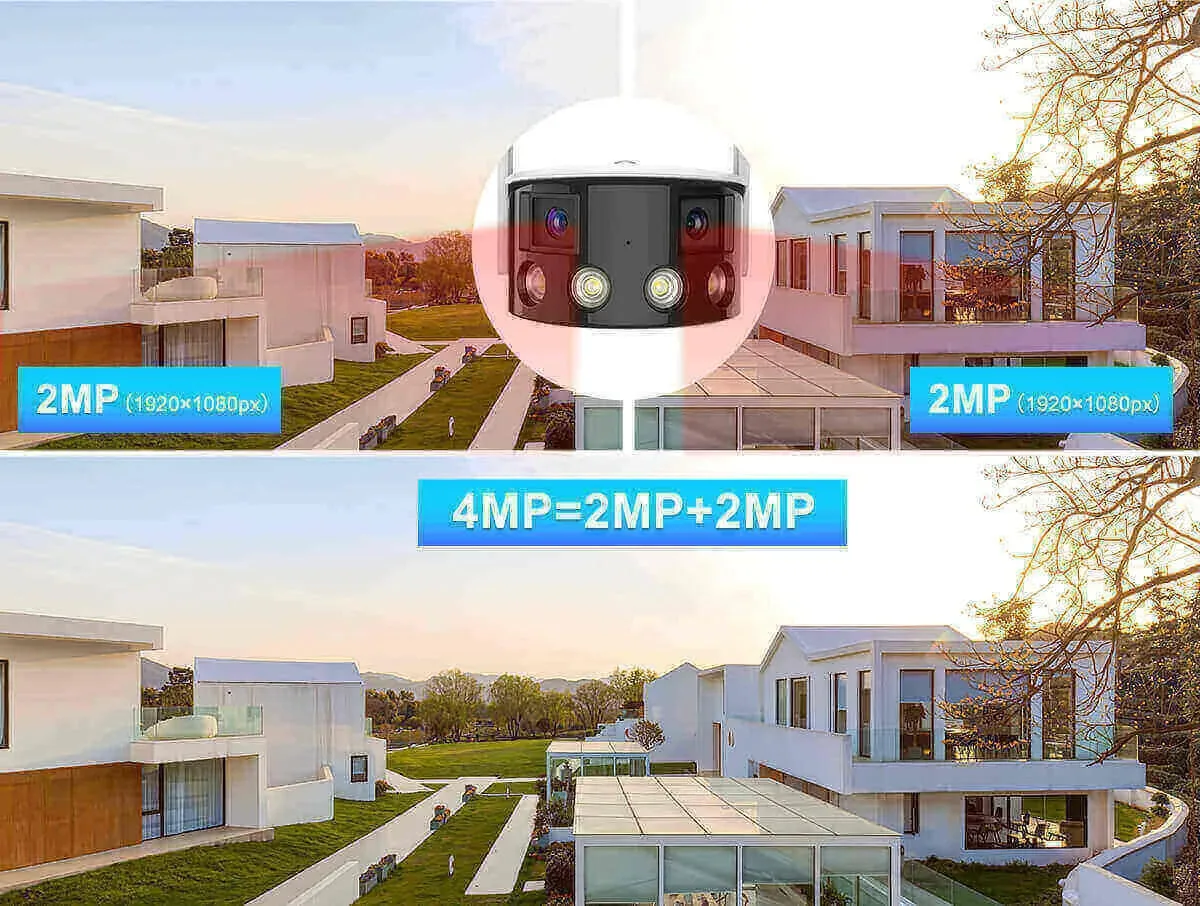

Does N4D2 provide a single 4MP stream?
4MP is the combined resolution of two 2MP sensors. It should not be treated as the resolution of one recorded stream.

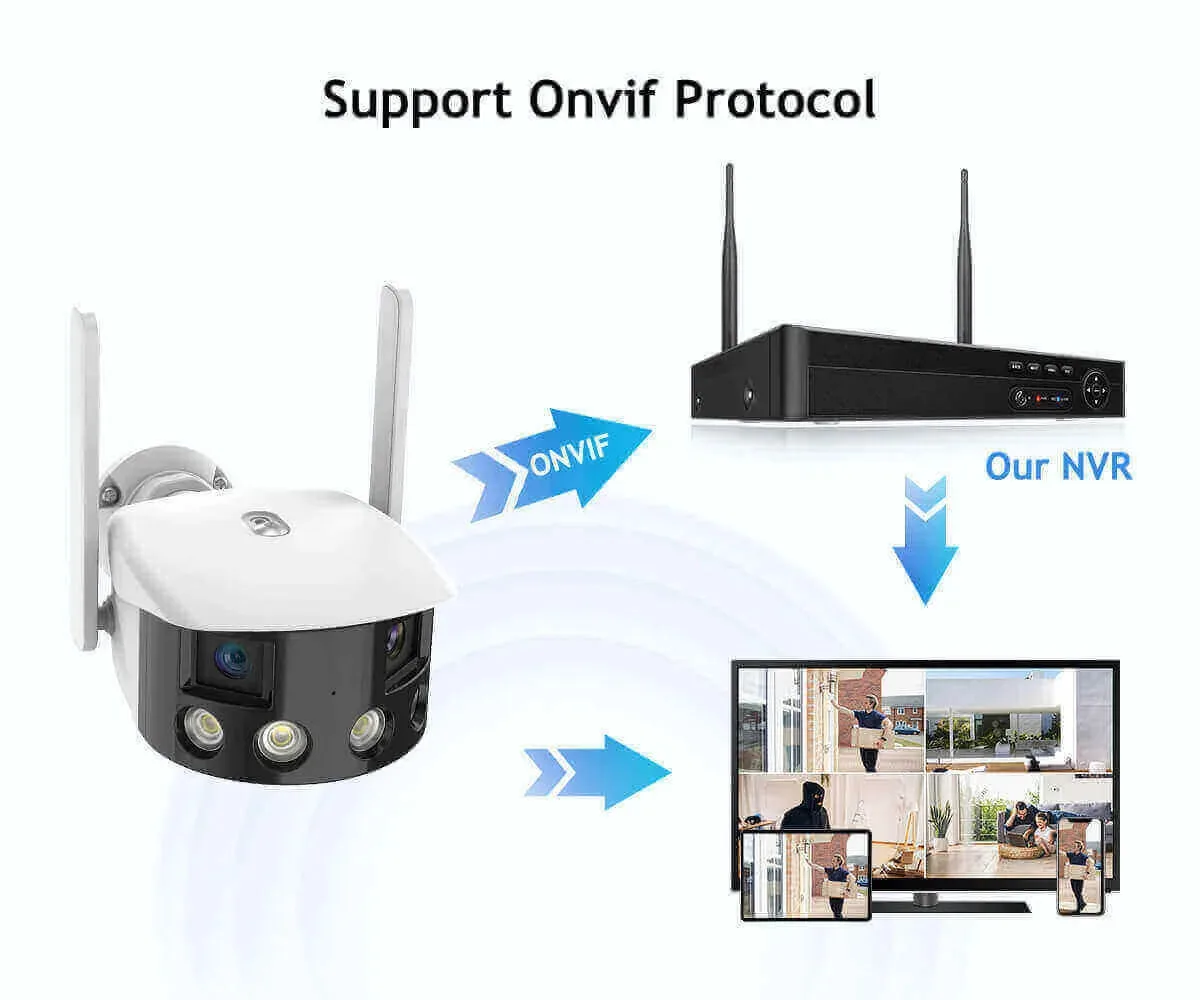

Can I add N4D2 to another NVR?
N4D2 supports ONVIF. Check video, saved audio, playback and required events with the exact recorder and firmware.
Is a memory card always included?
No. Choose the no-card or 64GB option. N4D2 supports microSD/TF storage up to 128GB.
Will the wide view replace a close detail camera?
Use it for overview coverage. Test the detail you need at the farthest target position; add a closer view where identification is required.
Practical guides
Specifications
Check the details that affect performance.
Prepare your quote with the model, camera quantity, resolution, storage and detection features you need. Include existing equipment and compatibility requirements so we can match the configuration to your installation.
| Model | XM-N4D2-40W |
|---|---|
| Resolution | Two 2MP sensors; 4MP combined |
| Lens | Two 4mm lenses |
| Viewing angle | 180° |
| Connection | Wi-Fi |

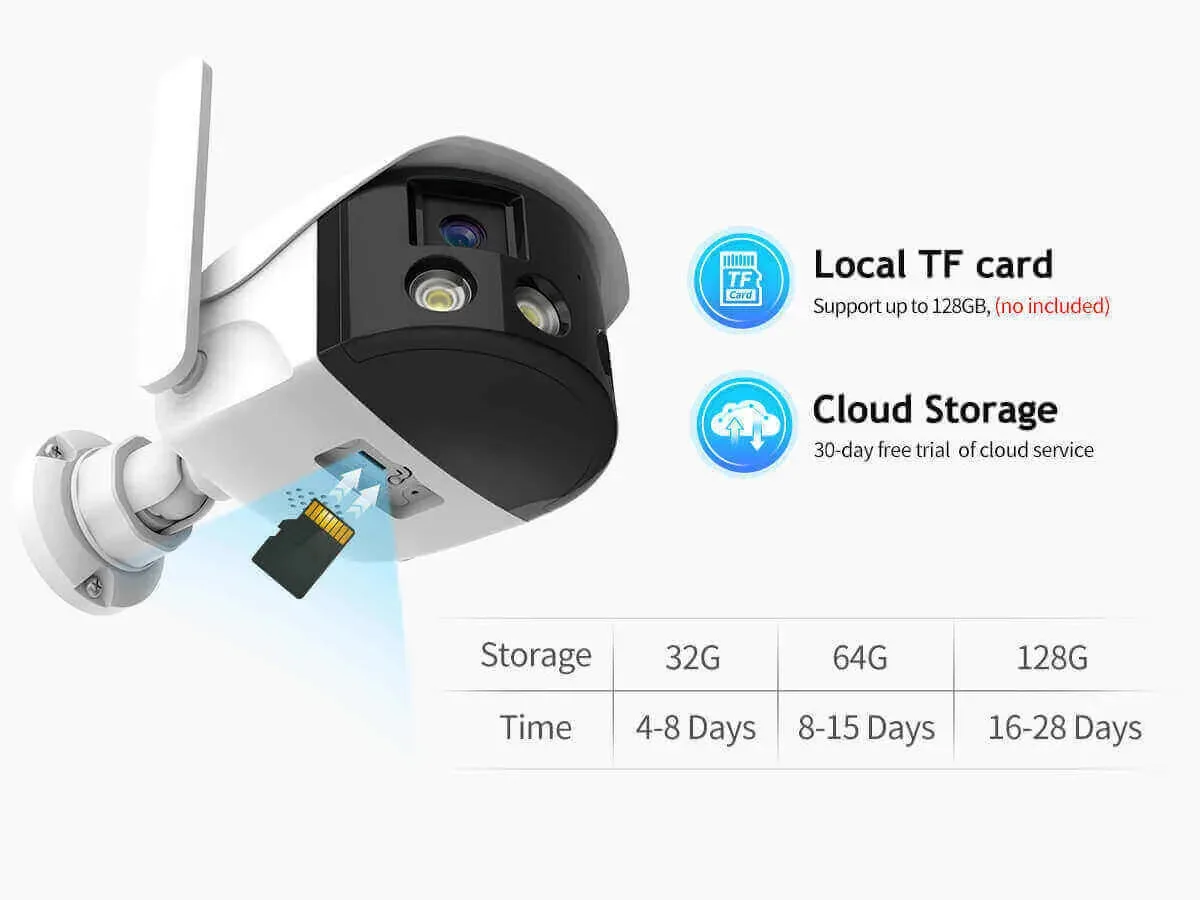

| Local storage | microSD/TF up to 128GB |
| Audio | Built-in microphone and speaker |
| Housing | ABS; IP66 |
| Recorder connection | ONVIF support; functions depend on camera/NVR combination |
Compare listed configurations
Choose your configuration
Compare the listed options. Confirm the exact model and configuration with sales.
- No SD CardXM-N4D2-40W $64.99 Request a Quote
- With 64GB SD CardXM-N4D2-40W-64G-CP $69.99 Request a Quote
Best fit
- Broad frontage views
- Driveway and yard overviews
- Entrances that need a fixed wide view
Before you order
Use these checks to avoid compatibility, storage, and installation surprises.
- Human or vehicle detection needs
- Alert zones and false-alarm concerns
- Two-way audio or deterrent-light needs
Manuals and App
Model FAQ
Does N4D2 provide a single 4MP stream?
4MP is the combined resolution of two 2MP sensors. It should not be treated as the resolution of one recorded stream.
Can I add N4D2 to another NVR?
N4D2 supports ONVIF. Check video, saved audio, playback and required events with the exact recorder and firmware.
Is a memory card always included?
No. Choose the no-card or 64GB option. N4D2 supports microSD/TF storage up to 128GB.
Will the wide view replace a close detail camera?
Use it for overview coverage. Test the detail you need at the farthest target position; add a closer view where identification is required.
Request a quote
Choose your product and quantity.
This product is already selected. Send the form for a quote, configuration review, and shipping options. Submitting does not place an order.
Need a quick product answer first? Email sales@quarkview.com.
1
Product selected
XM-N4D2-40W is carried into the request automatically.
2
Choose the quantity
Buy one system, compare configurations, or prepare a repeat order.
3
Review the quote
Confirm the configuration, shipping, and terms before deciding whether to order.
