Eight camera PoE connections and two uplinks, with 10/100 Mbps networking and a separately limited Extend mode.
QuarkView POE108 8+2-Port PoE Switch
Compatible installation or replacement
Accessory
- Port configuration: 8 PoE + 2 uplinks
- Extend mode: PoE ports reduced to 10 Mbps
- Port and uplink speed: 10/100 Mbps; uplink maximum 100 Mbps
$49.99
USD
QuarkView · YN-POE108
01 / 05

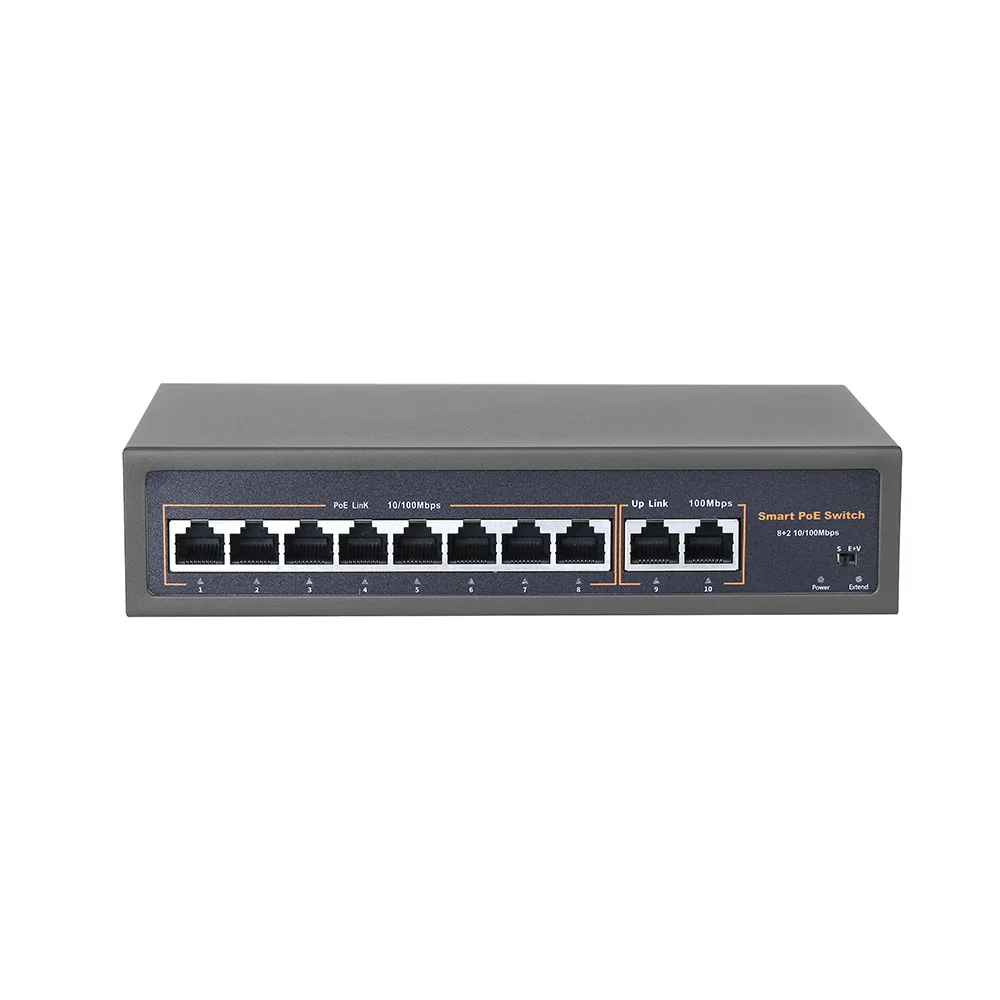

Visible connectors and ports
Specifications
| Port configuration | 8 PoE + 2 uplinks |
|---|---|
| Port and uplink speed | 10/100 Mbps; uplink maximum 100 Mbps |
| Extend mode | PoE ports reduced to 10 Mbps |
| PoE label | IEEE802.3af/at |
Full specifications and package contents
| Model | YN-POE108 |
|---|

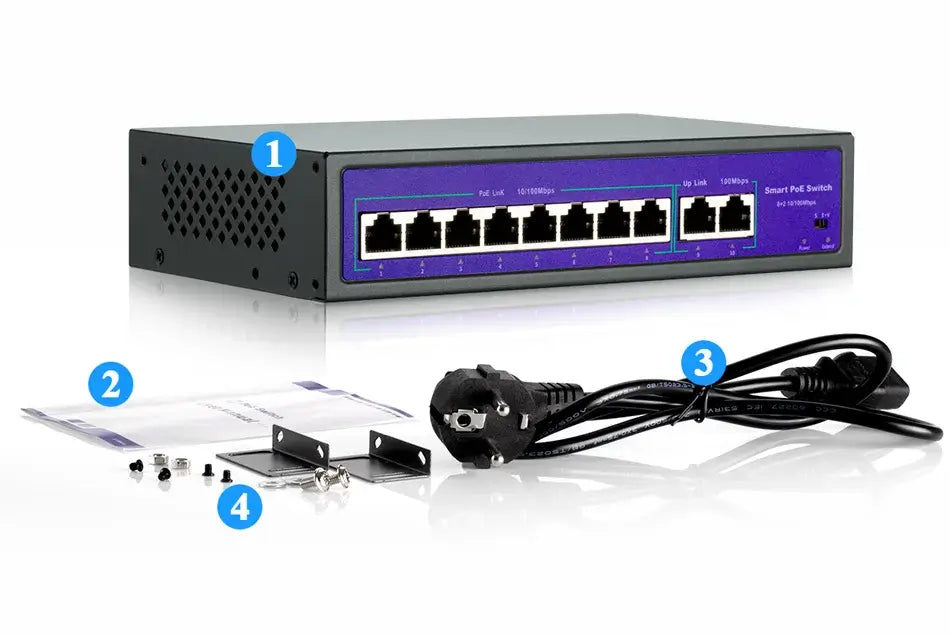

What is included
- One switch. AC cable, manual and mounting parts follow the supplied packing list.
Product details
More product details
- Size the shared 100 Mbps uplink from total camera bitrate plus headroom.
- In Extend mode, keep each camera stream below the 8 Mbps limit and verify the actual cable route.
- Obtain the total PoE budget before filling all eight ports; the 25W per-port statement does not establish 200W available power.
Model questions
Plan switch power and uplinks · Calculate camera bandwidth · Match DC and PoE power · Diagnose power, video and recording faults
Setup resources and product questions
Model FAQ
Does Extend mode keep 100 Mbps on each camera port?
No. Ports 1–8 run at 10 Mbps in Extend mode; the uplink remains up to 100 Mbps.
Can eight 25W cameras run together?
That would require 200W before allowance. The total PoE budget still requires confirmation; do not assume 200W is available.
Discuss samples, bulk supply or OEM requirements
Start with YN-POE108 and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
