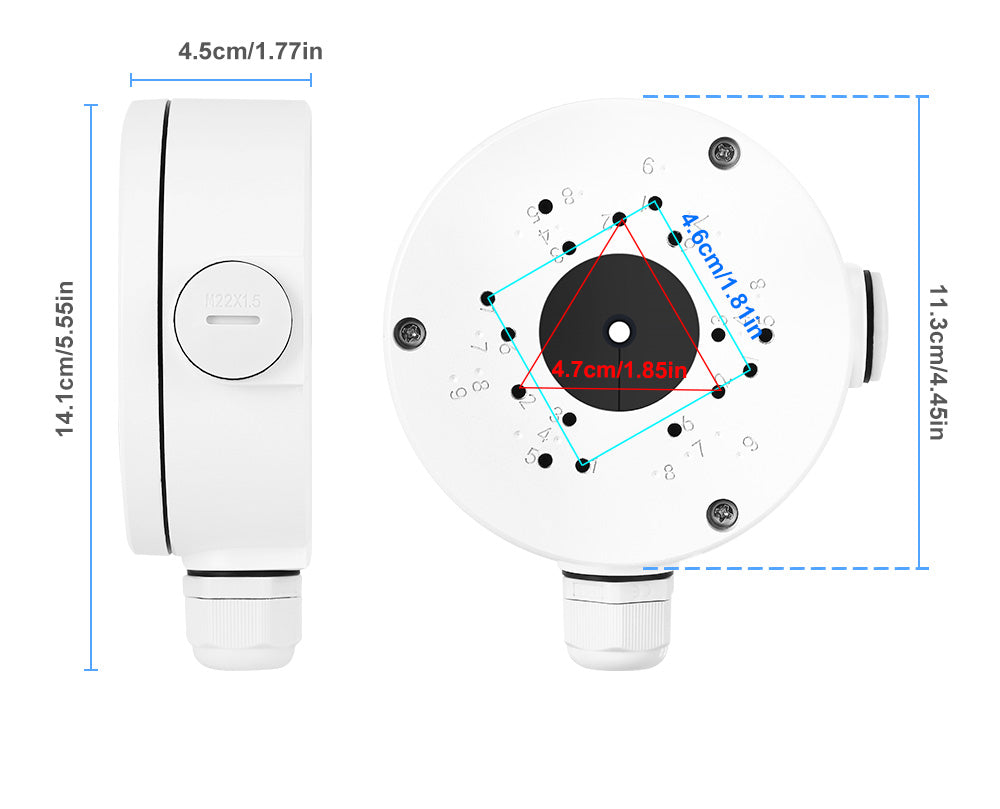

A surface-mount junction box for managing camera connectors, with a published dimension and hole-pattern drawing.
QuarkView CWB Camera Junction Box
Compatible installation or replacement
Accessory
- Mounting: Surface mount
- Body diameter: 113mm
- Depth: 45mm
$16.99
USD
QuarkView · YN-BOX-CWB
01 / 06

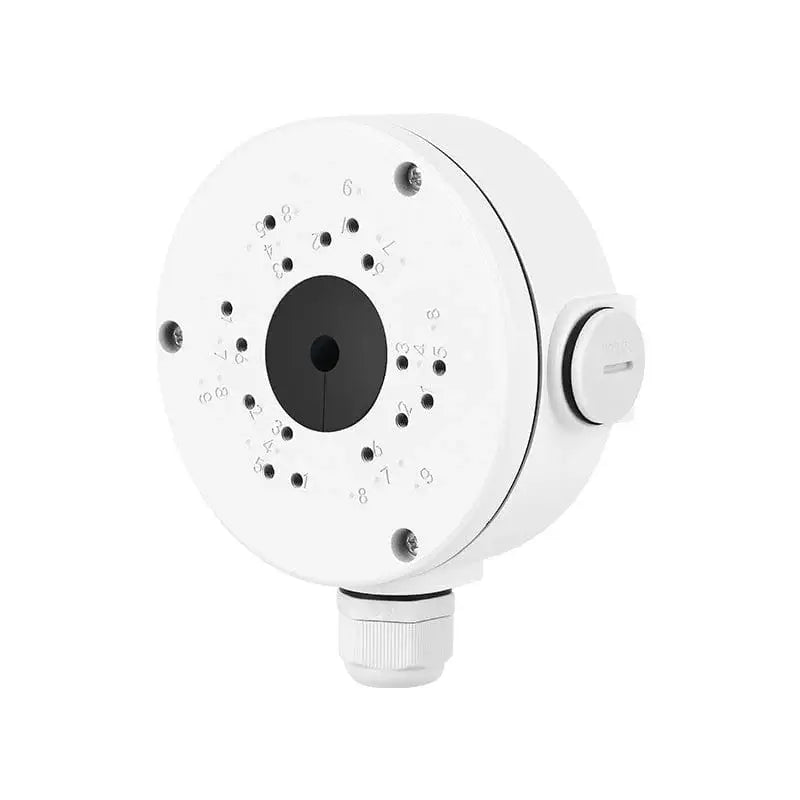

Device exterior
Specifications
| Mounting | Surface mount |
|---|---|
| Body diameter | 113mm |
| Depth | 45mm |
| Overall height with gland | 141mm |
Full specifications and package contents
| Model | YN-BOX-CWB |
|---|

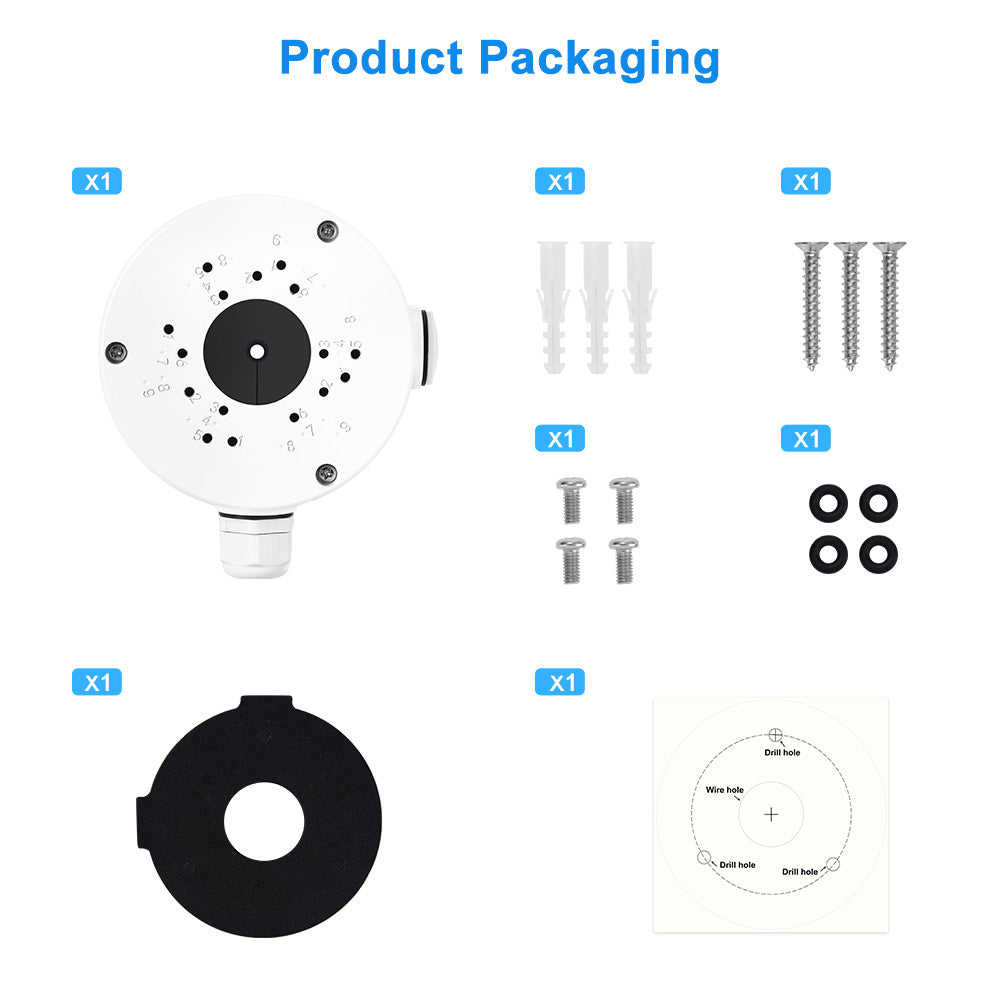

What is included
- One junction box.
- Gaskets, templates and fastener quantities follow the supplied packing list.
Product details
More product details
- Compare the camera base and actual mounting centres with the box drawing. A family name alone does not establish every suffix or revision.

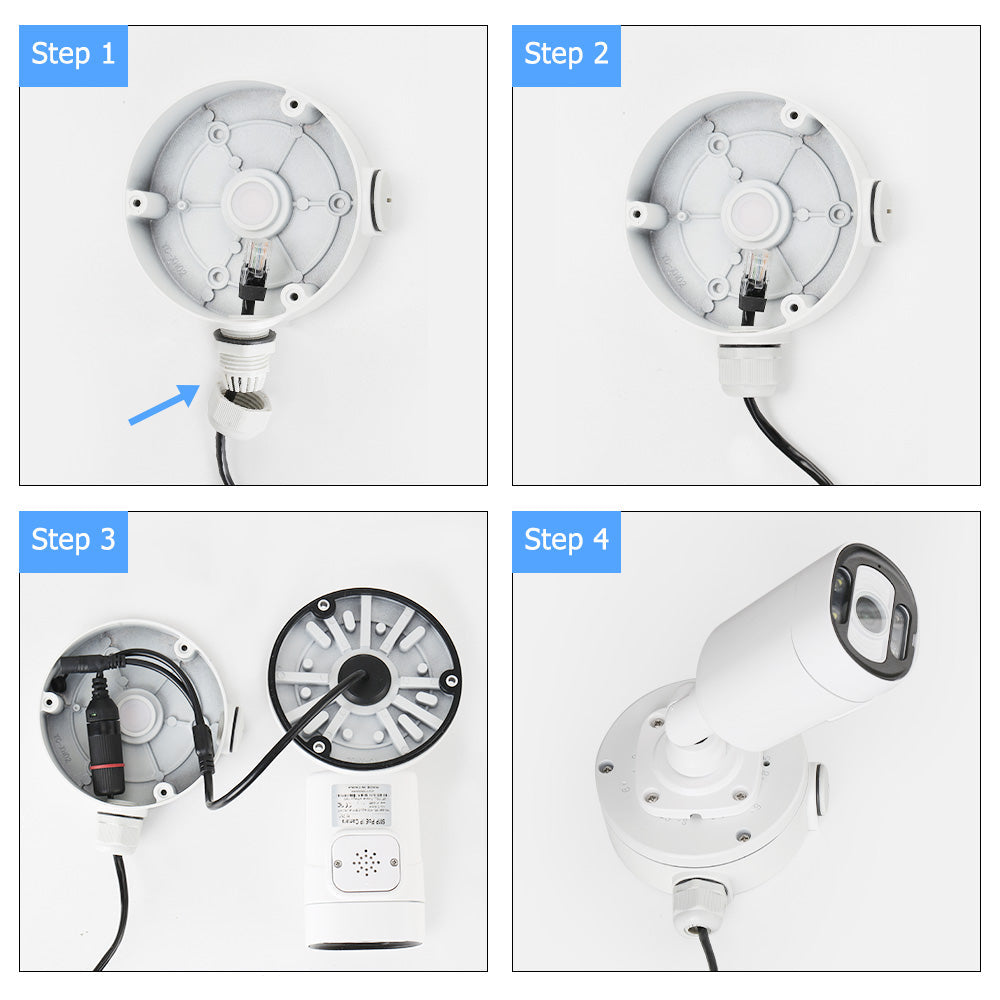

- Allow room for connectors and cable bends; seal glands and unused entries and support the wall fixings.
Model questions
Check junction box fit and sealing · Install and commission a wired system · Choose and protect camera cabling
Setup resources and product questions
Model FAQ
Will it fit every PT825 camera?
Check the exact camera base and hole pattern before selecting this box; a family name alone does not establish fit.

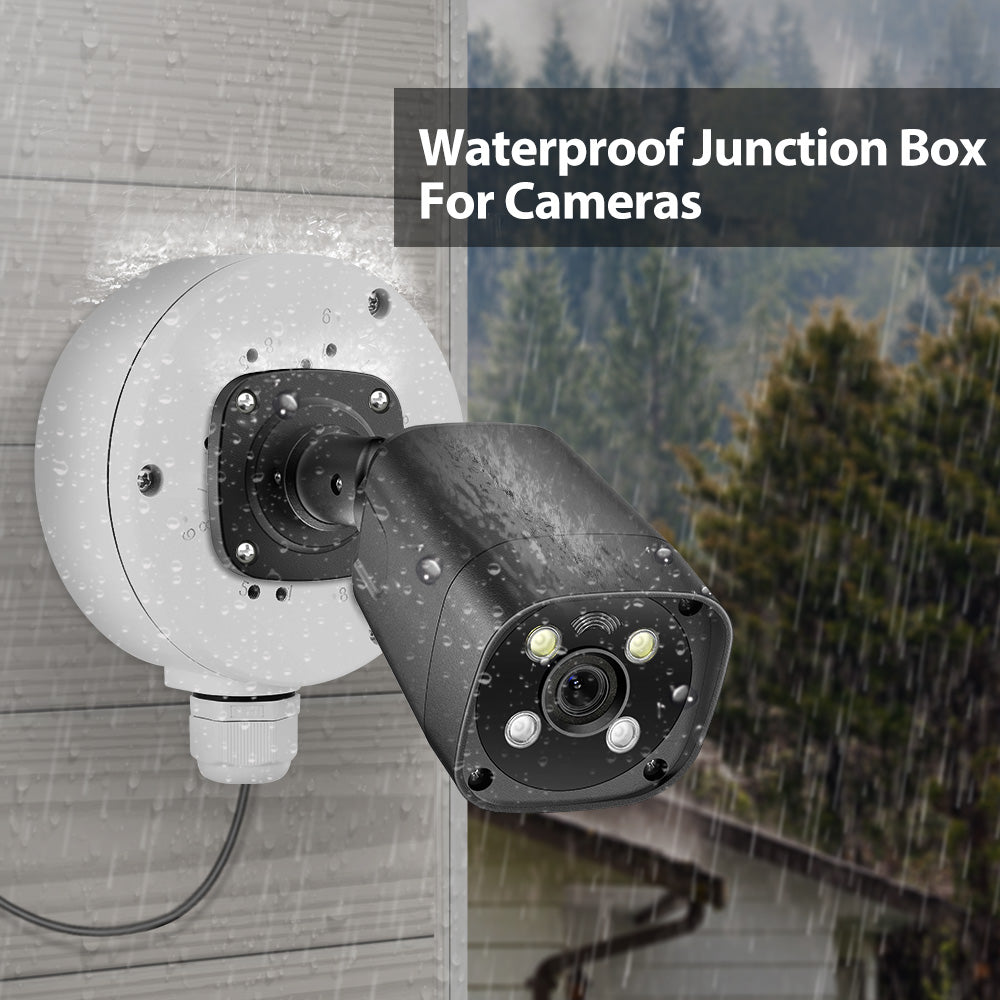

Does an IP66 box make the whole connection IP66?
The installed result also depends on the glands, seals, cable entry and unused openings.
Discuss samples, bulk supply or OEM requirements
Start with YN-BOX-CWB and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
