What is included
- 16 cameras in the matching base configuration
- 32-channel recorder
- Recording drive: No HDD

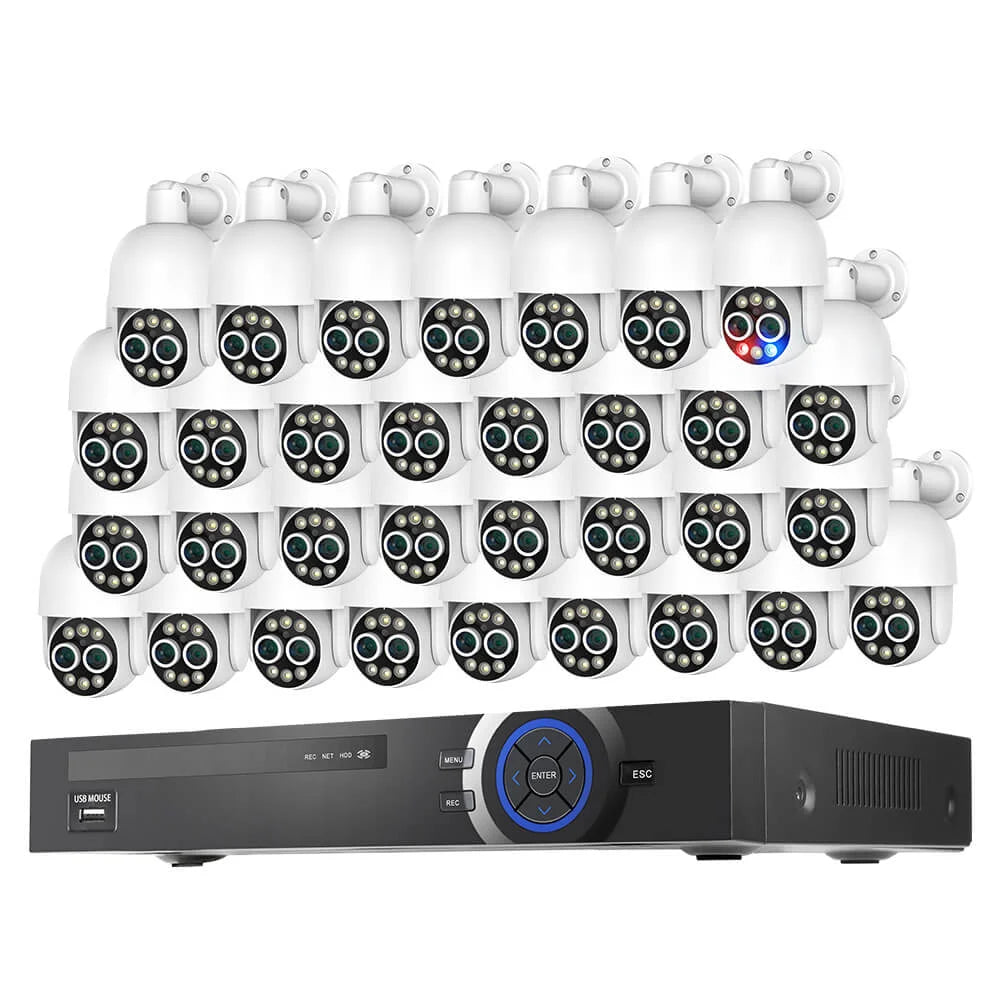

QuarkView 32CH PoE System with PT825D Dual-Lens Cameras
Plan a larger wired installation around a 32-channel recorder and sixteen PT825D dual-lens cameras. The base configuration has no HDD, so choose recording storage around the stream settings and retention needed at each position.
QuarkView · XM-7932K-16-PT825D-80P-CP
$999
USD
Listed price per package / product; final price and shipping confirmed in the quote.
01 / 04
Camera reference; system quantity and recording drive are selected separately
Best fit
- Multi-area warehouse and yard planning
- Sixteen initial camera positions with staged expansion
- Sites combining wide scene views and closer inspection
Plan your configuration: Choose your preferred option and include any existing equipment, installation needs and delivery destination in your quote.
Model PT825D-80P
Connection Wired PoE
Camera resolution Two lenses labelled 4MP each; 8MP combined sensor count
NVR channels 32
Product features
- PoE Ethernet connection
- Dual-lens near and far viewing
- Human detection
- Two-way audio
- Infrared and white-light night modes
- Human auto-tracking
Product overview
Product details
Plan a larger wired installation around a 32-channel recorder and sixteen PT825D dual-lens cameras. The base configuration has no HDD, so choose recording storage around the stream settings and retention needed at each position.
A wider scene and a closer view

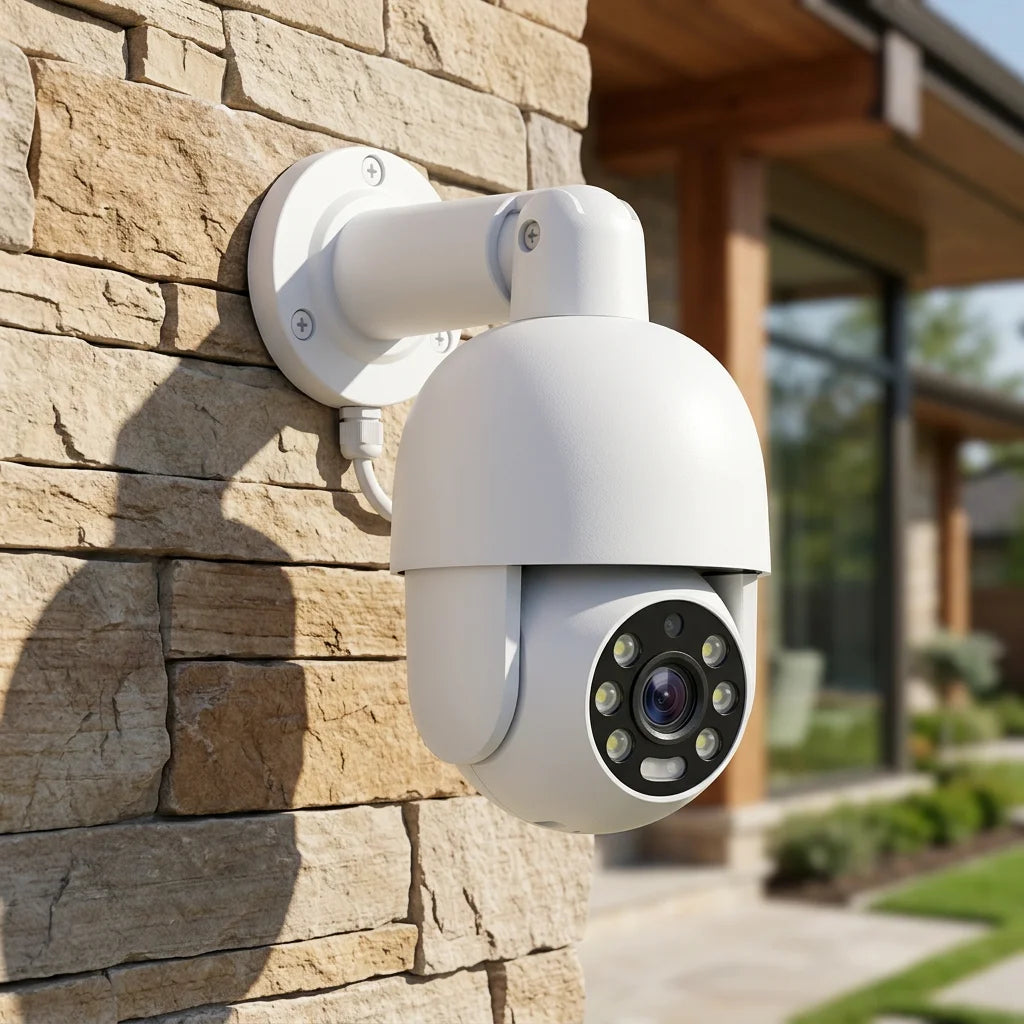

The PT825D uses two lenses for near and far viewing. Each lens is labelled 4MP. Plan the views around an entrance and its approach rather than treating the combined sensor count as one recorded 4K stream.

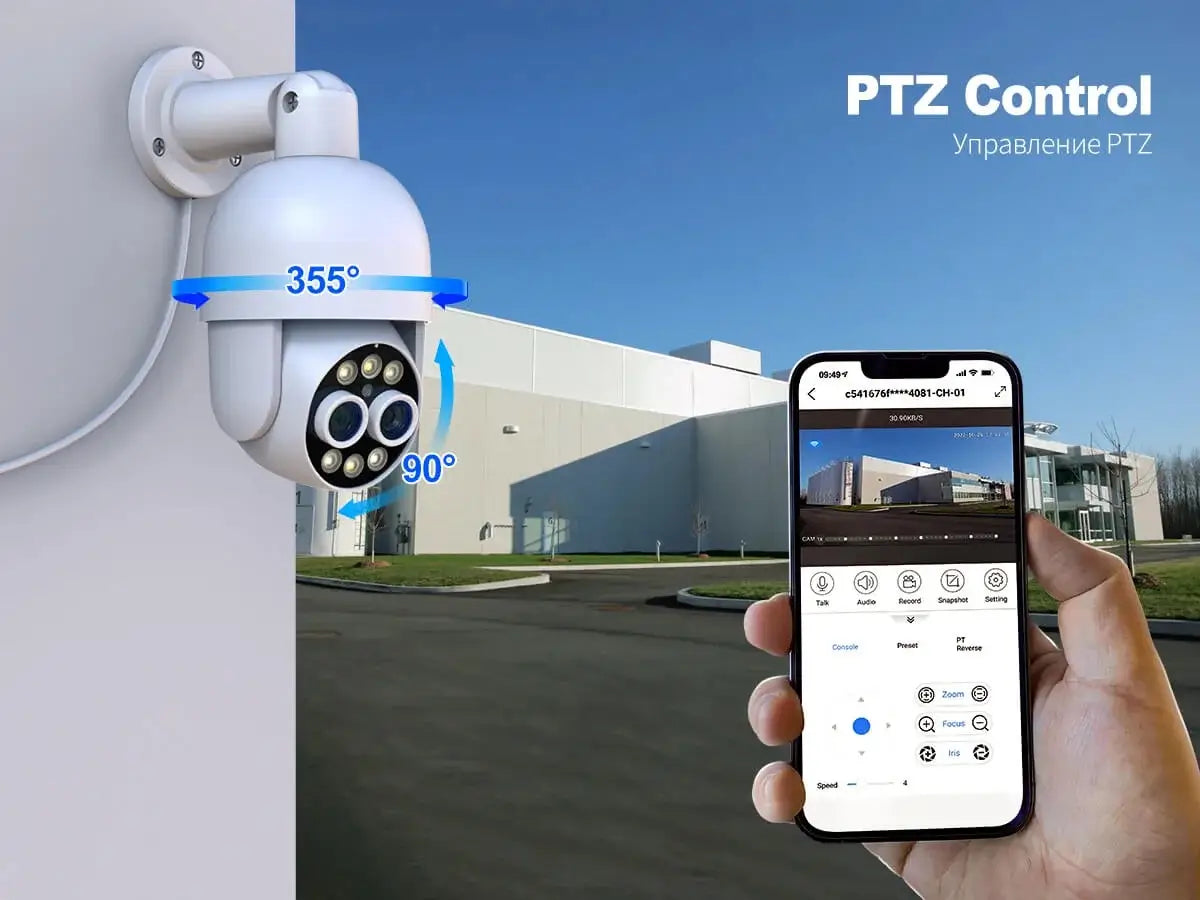

Move the view around the scene
Remote pan and tilt changes the direction the camera faces. Human tracking and return to a home position are listed for this 32-channel configuration. Keep a fixed overview at positions that need uninterrupted coverage.
Choose the night behavior and talk through the camera
A built-in microphone and speaker support two-way talk. Infrared viewing and white-light color modes serve different lighting needs. White illumination is used for the color night view; evaluate the installed view at the actual target distance.
Connect power and plan the recording
Connect each camera to a suitable PoE NVR port or powered switch over Ethernet. The 32CH recorder and supplied camera quantity are separate limits. Size the drive using recorded bitrate and retention needs.
Selected configuration
- 16 cameras in the matching base configuration
- 32-channel recorder
- Recording drive: No HDD
Setup and software
iCSee handles camera setup and viewing. Camera viewing and recorder access are separate setup tasks.
Does the 8MP label mean one recorded 4K image?
It describes two lenses labelled 4MP each. It does not establish the pixel dimensions of an individual recorded stream.
Is the zoom a continuous 8X optical lens?
PT825D uses separate near and far lens views. Switching views and enlarging a digital image differ from changing the focal length of a motorized optical lens; no continuous optical-zoom ratio is specified here.
Are the two pictures a stitched panorama?
Picture-in-picture places a smaller view within another view. A stitched panorama and two independent recorded channels are different layouts and are not established by a dual-view display.
Does this camera need Wi-Fi?
No. The listed PoE configuration uses Ethernet for the network connection and a compatible PoE source for power.
What do the recorder channels and camera quantity mean?
The matching base configuration has 16 cameras and a 32-channel recorder. Channel capacity is separate from supplied cameras and physical powered ports.
Is a hard drive included in the sixteen-camera base configuration?
No. The base configuration is supplied without an HDD. Select recording storage for the required bitrate and retention period.
Practical guides
- Understand dual-lens viewing — Separate two sensors, PiP and stitched output.
- Wide angle and zoom — Compare a scene overview with closer detail.
- Camera and NVR compatibility — Check saved video, audio, controls and events individually.
- Size NVR recording storage — Calculate retention from recorded bitrate and recording mode.
Specifications
Check the details that affect performance.
Prepare your quote with the model, camera quantity, resolution, storage and detection features you need. Include existing equipment and compatibility requirements so we can match the configuration to your installation.
| Model | PT825D-80P |
|---|---|
| Connection | Wired PoE |
| Camera resolution | Two lenses labelled 4MP each; 8MP combined sensor count |
| NVR channels | 32 |
| Camera quantity | 16 |
| HDD options | No HDD |
| Mechanical movement | 355° pan / 90° tilt |
| Audio | Built-in microphone and speaker; two-way talk listed |
Compare listed configurations
Choose your configuration
Compare the listed options. Confirm the exact model and configuration with sales.
- Standard configurationXM-7932K-16-PT825D-80P-CPCameras supplied: 16 · Recording drive: No HDD $999 Request a Quote
Best fit
- Multi-area warehouse and yard planning
- Sixteen initial camera positions with staged expansion
- Sites combining wide scene views and closer inspection
Before you order
Use these checks to avoid compatibility, storage, and installation surprises.
- Camera count and cable length
- NVR channel and storage target
- Indoor/outdoor camera mix
Manuals and App
- PT825 PoE camera family manual — English (PDF) (opens a new tab)
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
- camera: iCSee — Android (opens a new tab)
- camera: iCSee — iOS (opens a new tab)
- QuarkView setup support (opens a new tab)
Model FAQ
Does the 8MP label mean one recorded 4K image?
It describes two lenses labelled 4MP each. It does not establish the pixel dimensions of an individual recorded stream.
Is the zoom a continuous 8X optical lens?
PT825D uses separate near and far lens views. Switching views and enlarging a digital image differ from changing the focal length of a motorized optical lens; no continuous optical-zoom ratio is specified here.
Are the two pictures a stitched panorama?
Picture-in-picture places a smaller view within another view. A stitched panorama and two independent recorded channels are different layouts and are not established by a dual-view display.
Does this camera need Wi-Fi?
No. The listed PoE configuration uses Ethernet for the network connection and a compatible PoE source for power.
What do the recorder channels and camera quantity mean?
The matching base configuration has 16 cameras and a 32-channel recorder. Channel capacity is separate from supplied cameras and physical powered ports.
Is a hard drive included in the sixteen-camera base configuration?
No. The base configuration is supplied without an HDD. Select recording storage for the required bitrate and retention period.
Request a quote
Choose your product and quantity.
This product is already selected. Send the form for a quote, configuration review, and shipping options. Submitting does not place an order.
Need a quick product answer first? Email sales@quarkview.com.
1
Product selected
XM-7932K-16-PT825D-80P-CP is carried into the request automatically.
2
Choose the quantity
Buy one system, compare configurations, or prepare a repeat order.
3
Review the quote
Confirm the configuration, shipping, and terms before deciding whether to order.
